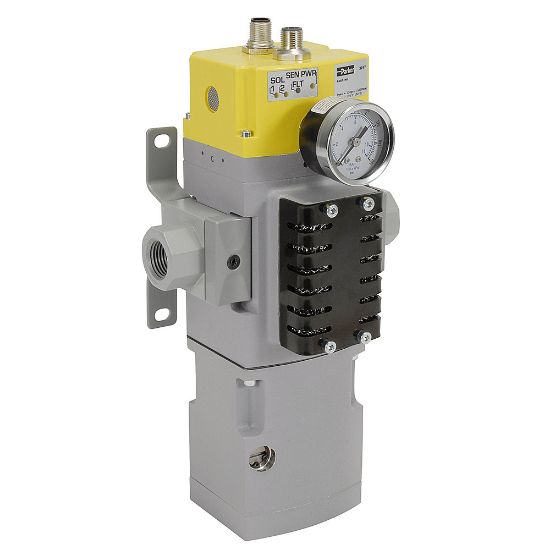

Parker P33DB16CAEM - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P33DB16CAEM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Technology	Pneumatics	Width	8
Function	3/2 Normally-Closed	Flow Rate	≤ 265
Maximum Operating Pressure	150	Division	Pneumatic Division
Minimum Operating Pressure	10	Port Size	3/4
Product Type	Safety Exhaust Valve	Height	17.87
Brand	Parker	Port Type	NPT
Length	10.93	Seal Material	Nitrile Butadiene Rubber (NBR)
Product Style	Electro-Pneumatic (Solenoid Actuated)	Weight	1.9
Body Material	Cast Aluminum	Electrical Connection	M12 (x2)
Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)	Industry	General Industry
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Input Voltage	24
Operating Temperature	4 to 50	Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)
Options	Black Grill	Product Style	[P33D] - Without Soft Start
Port Size	[6] - 3/4 inch	Pressure Gauge	[EM] - MPS-P34 pressure sensor
Solenoid Connection	[C] - M12 pins: 3 & 4 for bipolar outputs	Sensor Connection	[A] - M12 pins: 1&2, 1&4, common 3
Port Type	[B1] - BSPP "G"
