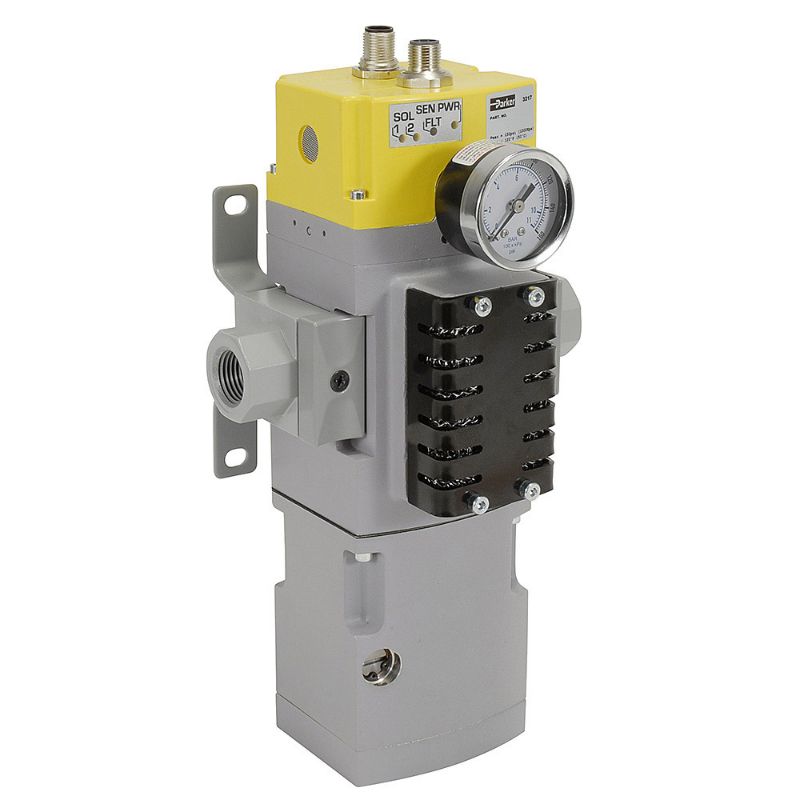

Parker P33DB16ABEM - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P33DB16ABEM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Electrical Connection	M12 (x2)	Port Size	3/4
Minimum Operating Pressure	10	Height	17.87
Product Type	Safety Exhaust Valve	Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)
Operating Temperature	4 to 50	Input Voltage	24
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Body Material	Cast Aluminum
Product Style	Electro-Pneumatic (Solenoid Actuated)	Weight	1.9
Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)	Industry	General Industry
Port Type	NPT	Brand	Parker
Length	10.93	Seal Material	Nitrile Butadiene Rubber (NBR)
Flow Rate	≤ 265	Division	Pneumatic Division
Technology	Pneumatics	Width	8
Maximum Operating Pressure	150	Function	3/2 Normally-Closed
Sensor Connection	[B] - M12 pins: 1&2, 5&4, common 3	Product Style	[P33D] - Without Soft Start
Pressure Gauge	[EM] - MPS-P34 pressure sensor	Options	Black Grill
Solenoid Connection	[A] - M12 pins: 2 & 4 with common 3	Port Type	[B1] - BSPP "G"
Port Size	[6] - 3/4 inch
