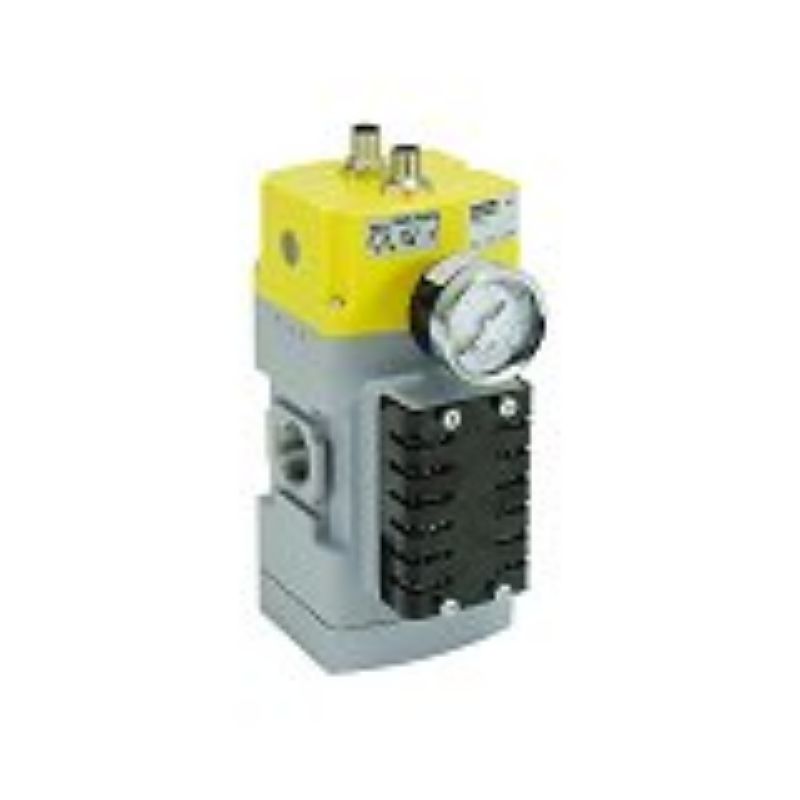

Parker P33DB16AAEG - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P33DB16AAEG

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	1.9	Body Material	Cast Aluminum
Product Style	Electro-Pneumatic (Solenoid Actuated)	Electrical Connection	M12 (x2)
Product Type	Safety Exhaust Valve	Industry	General Industry
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Operating Temperature	4 to 50
Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)	Input Voltage	24
Width	8	Maximum Operating Pressure	150
Flow Rate	≤ 265	Division	Pneumatic Division
Technology	Pneumatics	Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)
Port Size	3/4	Height	17.87
Minimum Operating Pressure	10	Length	10.93
Port Type	NPT	Seal Material	Nitrile Butadiene Rubber (NBR)
Brand	Parker	Function	3/2 Normally-Closed
Solenoid Connection	[A] - M12 pins: 2 & 4 with common 3	Sensor Connection	[A] - M12 pins: 1&2, 1&4, common 3
Port Type	[B1] - BSPP "G"	Pressure Gauge	[EG] - Standard Dial Gauge
Options	Black Grill	Product Style	[P33D] - Without Soft Start
Port Size	[6] - 3/4 inch
