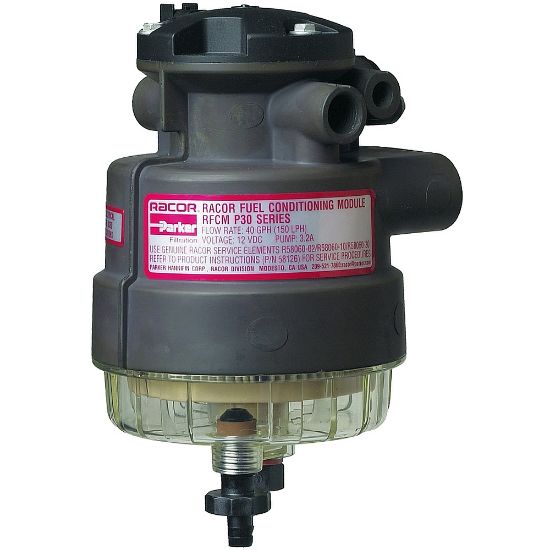

Parker P3210NH - Diesel Fuel Conditioning Module – Racor P Series

The Racor P Series is a Diesel Fuel Conditioning Module that comes equipped with an electric fuel pump, a fuel filter/water separator, a contaminant collection bowl with a water sensor, and a thermostatically-controlled PTC-type electric pre-heater.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P3210NH

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	4.5 inch	Application	All fuel delivery
Product Series	P-Series	For Fluid Type	Diesel/B20
Water Sensor Option	Standard	Port Size	NPT (x2)
Mounting Type	Bracket Included	Brand	Racor
Division	Engine Mobile Original Equipment Division	Height	19.6 cm
Depth	5.2 inch	Clean Pressure Drop	0.4 psi
Pump Type	40 gph/151 lph maximum output	Optional Accessories	See Product Overview & Support Tabs
Compatible Element	R58060-10, -02, -30	Bowl Type	Clear Engineering Plastic
Heat Type	DC 12V DC, 150 W	Flow Rate	30 gph/114 lph
Micron Rating	98% at 10 microns
