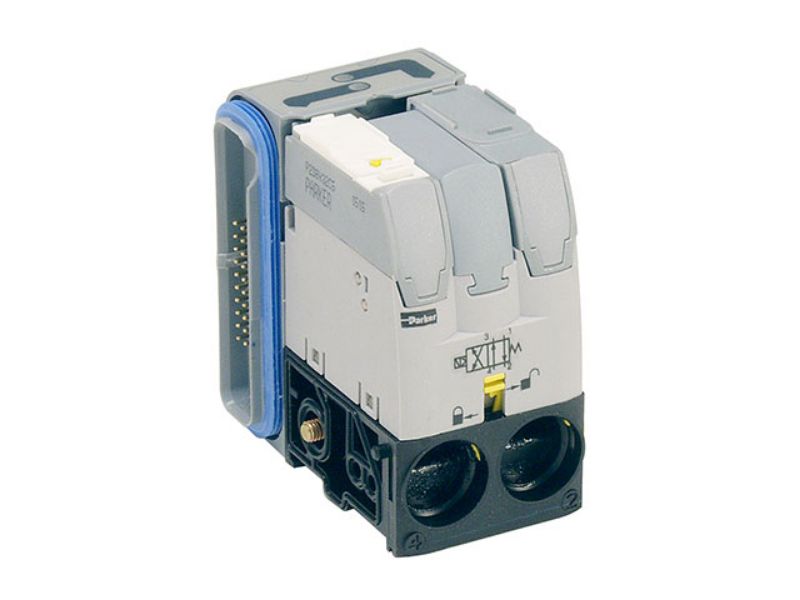

Parker P2M2V3ES2CV - Moduflex V Series - Size 2 Valve

Parker flexible manifold valve system with collective or fieldbus electrical connections for use with integrated Push-to-Connect fittings

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P2M2V3ES2CV

$130.47

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	CV Factor	0.44
Operator Type Detail	Single	Override Type	Multi-function
UOM	EA	Pilot Supply	Internal
Pkg Qty	1	Solenoid Voltage	24 VDC
Operator Type	Solenoid	Series Type	V Series - Size 2
Pilot Supply	Internal	Operating Temperature	5°F to 140°F (-15°C to 60°C)
CV Factor	0.44	Series	Moduflex
Solenoid Connection	Collective Wiring	Valve Positions	2-position
Valve Passages	3-way	Center Condition	NC w/Exhaust Check
Pneumatic Valve Type	Manifold Valve	Parker Division	Pneumatic
Trade Name	Moduflex	Operator Type	Solenoid
Override Type	Multi-function	Offset Return Type	Spring Return
Solenoid Voltage	24 VDC	Parker Group	Automation
Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)	Operator Type Detail	Single
