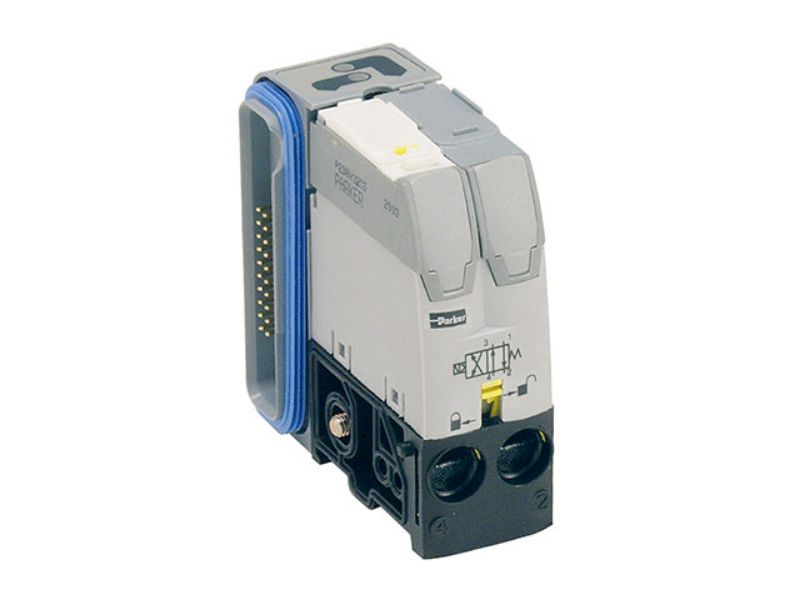

Parker P2M1VJEE2CV - Moduflex V Series - Size 1 Valve

Parker flexible manifold valve system with collective or fieldbus electrical connections for use with integrated Push-to-Connect fittings

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P2M1VJEE2CV

$198.52

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Override Type	Multi-function	CV Factor	0.18
Solenoid Voltage	24 VDC	Pilot Supply	Internal
Pkg Qty	1	Operator Type	Solenoid
Operator Type Detail	Double	Valve Passages	4-way
Operating Temperature	5°F to 140°F (-15°C to 60°C)	Parker Group	Automation
Series Type	V Series - Size 1	Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)
Valve Positions	2-position	Pilot Supply	Internal
Solenoid Voltage	24 VDC	Center Condition	Dual Valve w/Exhaust Check
Series	Moduflex	Solenoid Connection	Collective Wiring
CV Factor	0.18	Trade Name	Moduflex
Offset Return Type	Spring Return	Override Type	Multi-function
Parker Division	Pneumatic	Operator Type	Solenoid
Operator Type Detail	Double	Pneumatic Valve Type	Manifold Valve
