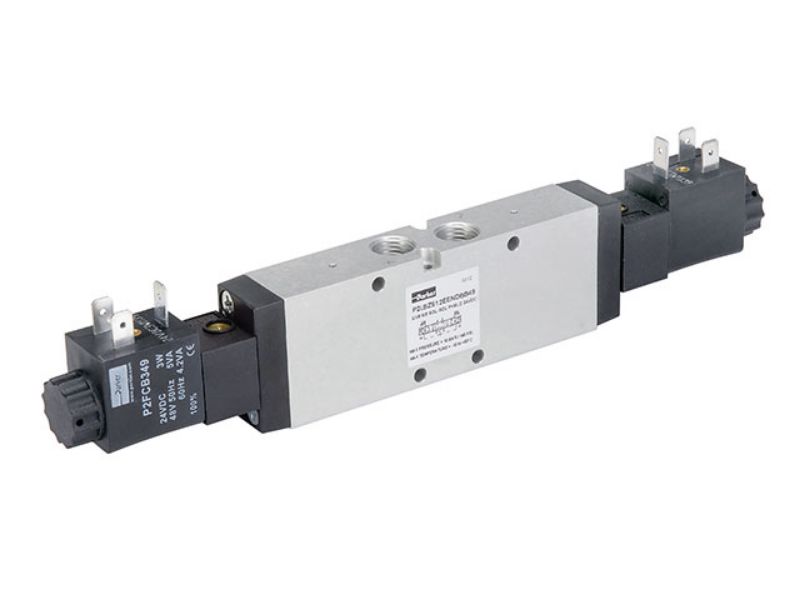

Parker P2LCZ693EENDBB49 - Viking Lite Series Double Solenoid 4-way 3-position Valve

Double Solenoid, 4-way, 3-position, Spring Return, Center Exhaust

Availability:	Quote Required
Partner Available:	18 In Stock

Brand Parker

Part No. P2LCZ693EENDBB49

$137.64

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Operator Type Detail	Double
Center Condition	All Ports Blocked	Port	3/8 NPT
Solenoid Voltage	24VDC	UOM	EA
Override Type	Non-locking	Offset Return Type	Spring Return
Pkg Qty	1	Pilot Supply	Internal
CV Factor	2.5	Series	Viking Lite
Override Type	Non-locking	Operating Temperature	14°F to 122°F (-10°C to 50°C)
Solenoid Voltage	24VDC	Port	3/8 NPT
Pneumatic Valve Type	Inline Valve	Valve Positions	3-position
Port Inch/BSP	NPT	Trade Name	Viking Lite
Operator Type	Solenoid	Parker Division	Pneumatic
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)	Parker Group	Automation
Valve Passages	4-way	Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)
CV Factor	2.5	Pilot Supply	Internal
Center Condition	All Ports Blocked	Operator Type Detail	Double
Offset Return Type	Spring Return
