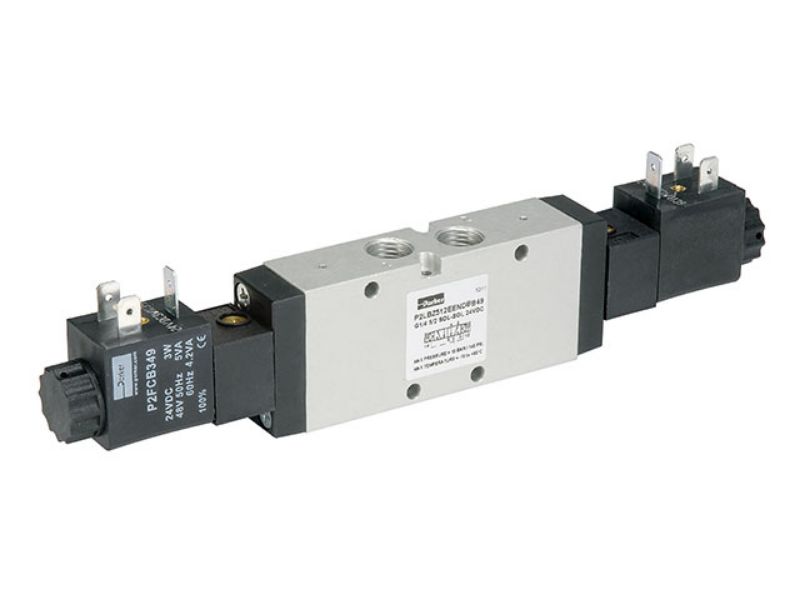

Parker P2LCZ593EENDBB53 - Viking Lite Series Double Solenoid 4-way 2-position Valve

Double Solenoid, 4-way, 2-position

Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. P2LCZ593EENDBB53

$123.28

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Override Type	Non-locking	Port	3/8 NPT
Pkg Qty	1	Pilot Supply	Internal
CV Factor	2.5	Operator Type Detail	Double
Solenoid Voltage	120VAC	Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
Parker Group	Automation	Valve Passages	4-way
Valve Positions	2-position	CV Factor	2.5
Pilot Supply	Internal	Operator Type Detail	Double
Parker Division	Pneumatic	Solenoid Voltage	120VAC
Series	Viking Lite	Port	3/8 NPT
Override Type	Non-locking	Operating Temperature	14°F to 122°F (-10°C to 50°C)
Pneumatic Valve Type	Inline Valve	Supply Pressure Range	22 to 145 PSIG (1.5 to 10 bar)
Port Inch/BSP	NPT	Operator Type	Solenoid
Trade Name	Viking Lite
