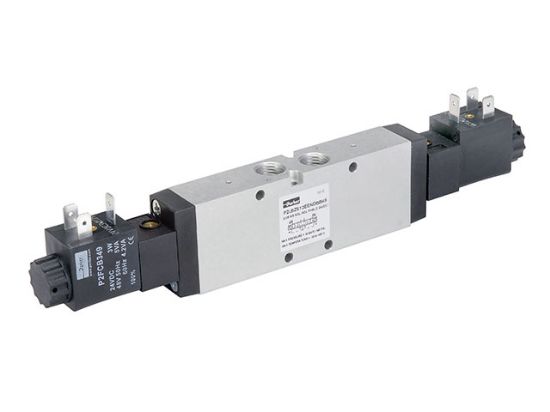

Parker P2LBZ892EENDBB49 - Viking Lite Series Double Solenoid 4-way 3-position Valve

Double Solenoid, 4-way, 3-position, Spring Return, Center Exhaust

Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. P2LBZ892EENDBB49

$116.12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Override Type	Non-locking	Port	1/4 NPT
Solenoid Voltage	24VDC	CV Factor	1.5
Offset Return Type	Spring Return	Pkg Qty	1
Pilot Supply	Internal	Center Condition	Center Exhaust
Operator Type Detail	Double	Parker Group	Automation
Valve Passages	4-way	Port	1/4 NPT
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)	Solenoid Voltage	24VDC
Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)	Pilot Supply	Internal
Center Condition	Center Exhaust	Offset Return Type	Spring Return
CV Factor	1.5	Series	Viking Lite
Override Type	Non-locking	Operating Temperature	14°F to 122°F (-10°C to 50°C)
Trade Name	Viking Lite	Pneumatic Valve Type	Inline Valve
Port Inch/BSP	NPT	Operator Type Detail	Double
Parker Division	Pneumatic	Operator Type	Solenoid
Valve Positions	3-position
