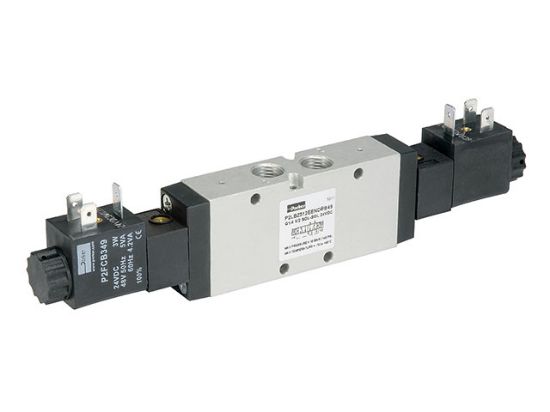

Parker P2LBZ592EENDBB49 - Viking Lite Series Double Solenoid 4-way 2-position Valve

Double Solenoid, 4-way, 2-position

Availability:	Quote Required
Partner Available:	40 In Stock

Brand Parker

Part No. P2LBZ592EENDBB49

$101.73

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Pilot Supply	Internal	Port	1/4 NPT
Operator Type Detail	Double	Solenoid Voltage	24VDC
CV Factor	1.5	UOM	EA
Override Type	Non-locking	Valve Positions	2-position
Supply Pressure Range	22 to 145 PSIG (1.5 to 10 bar)	Port Inch/BSP	NPT
Operator Type Detail	Double	Operator Type	Solenoid
Parker Division	Pneumatic	Series	Viking Lite
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)	Solenoid Voltage	24VDC
Pneumatic Valve Type	Inline Valve	Operating Temperature	14°F to 122°F (-10°C to 50°C)
CV Factor	1.5	Override Type	Non-locking
Trade Name	Viking Lite	Pilot Supply	Internal
Parker Group	Automation	Valve Passages	4-way
Port	1/4 NPT
