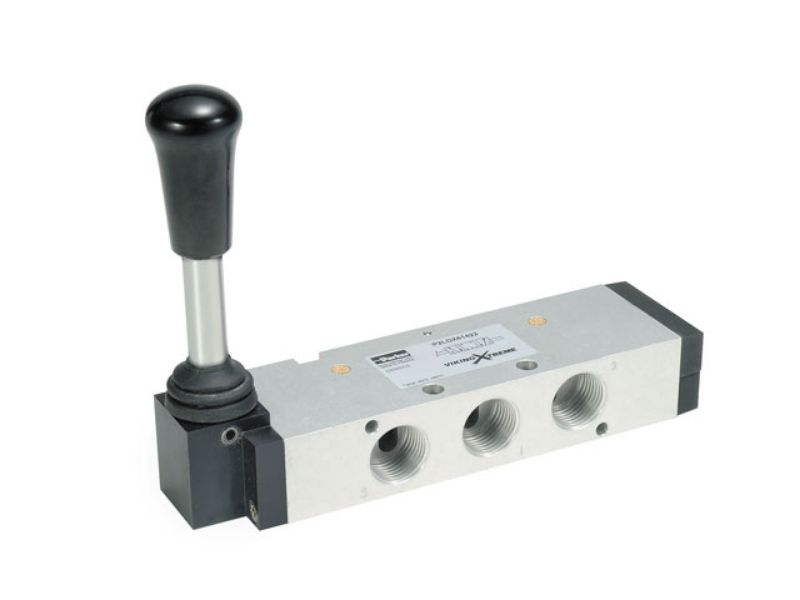

Parker P2LAX511VS - Viking Xtreme Series Manual/Mechanical Valve - 4-way 2-position Inline Perpendicular Lever

Viking Xtreme Series Manual/Mechanical Valve - 4-way 2-position Inline Perpendicular Lever

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P2LAX511VS

$115.43

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port	1/8 BSPP
UOM	EA	Offset Return Type	Spring Return
Operator Type Detail	Inline Perpendicular Lever	CV Factor	0.6
Pkg Qty	1	Valve Passages	4-way
Operator Type Detail	Inline Perpendicular Lever	Series	Viking Xtreme
Parker Group	Automation	Supply Pressure Range	Vacuum to 232 PSI (Vacuum to 16 bar)
Port Inch/BSP	BSPP	Valve Positions	2-position
Pneumatic Valve Type	Manual/Mechanical	Operator Type	Manual/Mechanical
Operating Temperature	-40°F to 140°F (-40°C to 60°C)	CV Factor	0.6
Parker Division	Pneumatic	Port	1/8 BSPP
Offset Return Type	Spring Return
