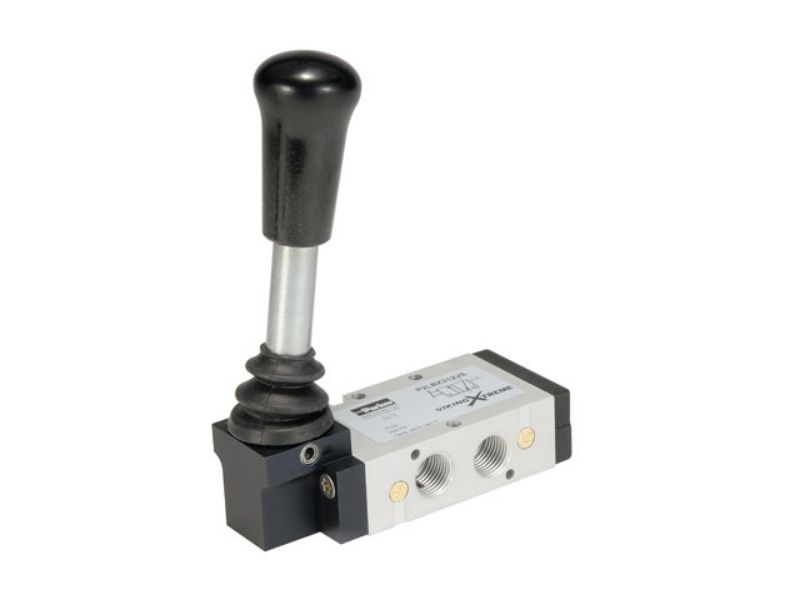

Parker P2LAX311VV - Viking Xtreme Series Manual/Mechanical Valve - 3-way 2-position Inline Perpendicular Lever

Viking Xtreme Series Manual/Mechanical Valve - 3-way 2-position Inline Perpendicular Lever

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P2LAX311VV

$112.93

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port	1/8 BSPP
Offset Return Type	Detent	Operator Type Detail	Inline Perpendicular Lever
Pkg Qty	1	UOM	EA
CV Factor	0.7	Port Inch/BSP	BSPP
Valve Positions	2-position	Valve Passages	3-way
CV Factor	0.7	Pneumatic Valve Type	Manual/Mechanical
Operator Type	Manual/Mechanical	Parker Division	Pneumatic
Operating Temperature	-40°F to 140°F (-40°C to 60°C)	Port	1/8 BSPP
Offset Return Type	Detent	Operator Type Detail	Inline Perpendicular Lever
Parker Group	Automation	Series	Viking Xtreme
Supply Pressure Range	Vacuum to 232 PSI (Vacuum to 16 bar)
