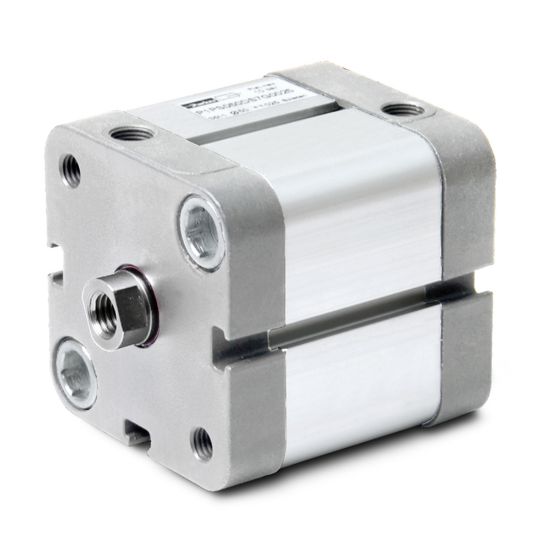

Parker P1PS050DS8G0125 - ISO 21287 COMPACT CYLINDERS, P1P SERIES

The P1P actuator in bore sizes Ø20 to Ø100mm is an ISO 21287 compact cylinder for standard temperature -20°C to +80°C with high and low temperature options suitable for processing, packaging and handling applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P1PS050DS8G0125

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	G 1/8	Specifications Met	ISO 21287
Maximum Operating Pressure	145 psi	Cylinder Type	Non-Guided
Rod End Thread Type	Female	End Cap Material	Aluminum
Bore Diameter	20 to 100 mm	Cylinder Action	Double Acting
Piston Rod Material	Stainless Steel	Maximum Stroke Length	500 mm
Corrosion Resistance Included	Yes	Switch Opening Temperature	-40 to 80 °C (Low)
Product Series	Pneumatic Cylinders	Extend Stroke Force	188 to 4712 N at 6 bar
Operating Temperature	-4 to 176 °F	Product Type	Compact Cylinder
Retract Stroke Force	138 to 4418 N	Body Type	Profile
Division	Pneumatic Division	Mounting Option	ISO 15552
Position Sensing Type	Sensor Slots on 4 Sides	Technology	Pneumatics
Body Material	Aluminum	Repairable	Yes
Cushioning Type	Rubber Buffer Fixed

Product resources

Literature and Reference Materials

0963 P1P ISO21287 Compact Pneumatic Cylinders Catalog (PDF)
