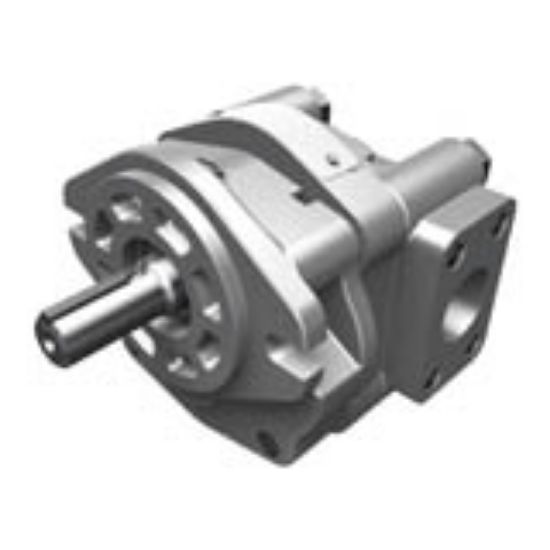

Parker P16 SERIES PUMPS - Iron and Aluminum Pumps - P16 Series

The Iron and Aluminum Pump P16 Series fixed displacement gear pump offers high performance and high power density due to its part aluminum construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P16 SERIES PUMPS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	n/a	Port Location	Rear Ports
Weight	9.1	Operating Pressure	up to 3000
Shaft Type	SAE	ConfiguratorType	Algroeconfigurator
Maximum Kinematic Viscosity	7500	For Fluid Type	Phosphate-ester
Maximum Operating Pressure	207	Thru-Drive Capability	No
Control Method	n/a	Direction of Rotation	Counterclockwise
Configuration	Tandem	Displacement	up to 64
Energy Recovery Capability	No	Flow Rate	n/a
Maximum Displacement	64	Pump Type	Gear
Maximum Fluid Temperature	80	Sensor Type	n/a
Minimum Kinematic Viscosity	50	ConfiguratorModelID	P16
Circuit Path	Open	Port Type	Straight Threaded
Charge Pump Included	No	Drain Option	No
Division	Pump & Motor Division	Port Connection	BSPP
Maximum Flow Rate	n/a	Minimum Fluid Temperature	-20
Mounting Option	SAE	Maximum Noise Level	n/a
Maximum Operating Speed	3600	Body Material	Aluminum/Cast Iron Body
Radial Load Capacity	Consult Parker	Filter Included	No
