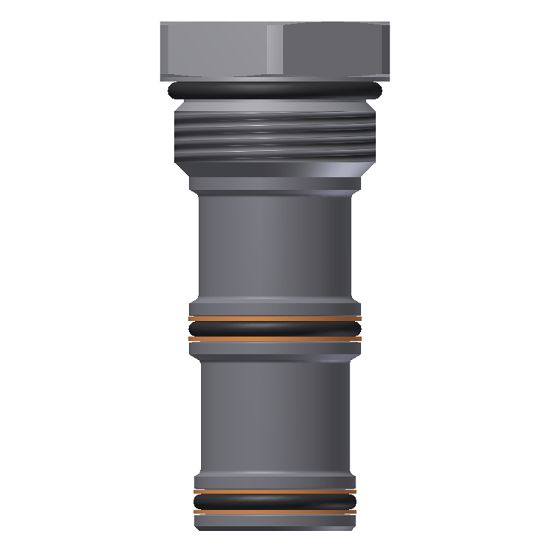

Parker P16-3C - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P16-3C

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.34 kg	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operating Temperature	-34 to +121 °C	Minimum Operating Temperature	-30 °F
Maximum Operating Temperature	+250 °F	Number of Positions	3 way
Maximum Operating Pressure	350 bar	Valve Material	All parts steel. All operating parts hardened steel
Body Material	n/a	Division	Hydraulic Systems Division
Actuation Type	n/a	Seal Material	Nitrile
Installation Torque	235 Nm	Maximum Flow Rate	n/a
Division	Hydraulic Cartridge Systems Division	Flow Rate	n/a
Cavity Size	C16	Configuration	Port 1 blocked
Type/Configuration	Port 1 blocked	Number of Positions	3 way
Cavity Size	C16	Seal Material	Nitrile
