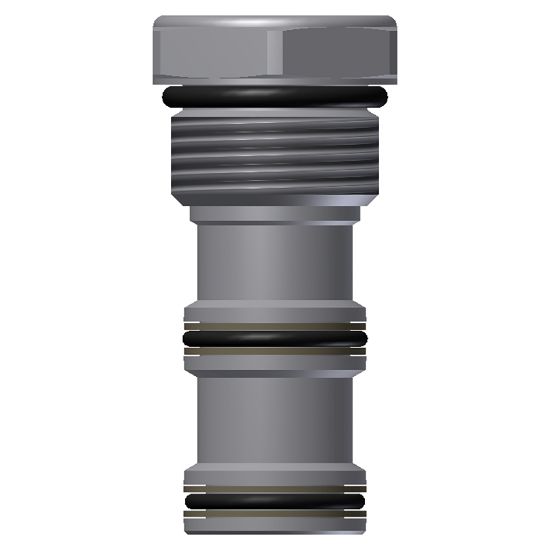

Parker P12-3C - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P12-3C

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cavity Size	C12	Number of Positions	3 way
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate	n/a
Minimum Operating Temperature	-34 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Weight	0.75 lb	Configuration	Port 1 blocked
Operating Temperature	-30 to +250 °F	Maximum Operating Temperature	+250 °F
Body Material	n/a	Installation Torque	131 Nm
Division	Hydraulic Cartridge Systems Division	Maximum Operating Pressure	350 bar
Maximum Flow Rate	n/a	Division	Hydraulic Systems Division
Actuation Type	n/a	Seal Material	Nitrile
Number of Positions	3 way	Seal Material	Nitrile
Cavity Size	C12	Type/Configuration	Port 1 blocked
