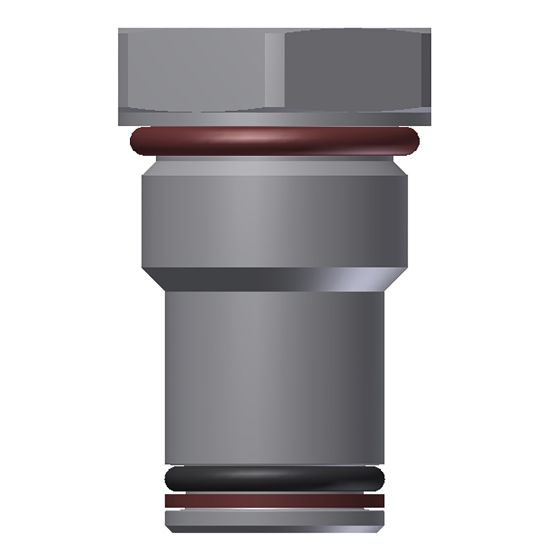

Parker P12-2 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P12-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	5000 psi	Valve Material	All parts steel. All operating parts hardened steel
Cavity Size	C12	Flow Rate	n/a
Number of Positions	2 way	Weight	0.29 kg
Minimum Operating Temperature	-30 °F	Configuration	All ports blocked
Operating Temperature	-34 to +121 °C	Maximum Operating Temperature	+250 °F
Installation Torque	131 Nm	Division	Hydraulic Systems Division
Maximum Flow Rate	n/a	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Actuation Type	n/a
Seal Material	Nitrile	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Number of Positions	2 way	Seal Material	Nitrile
Type/Configuration	All ports blocked	Cavity Size	C12
