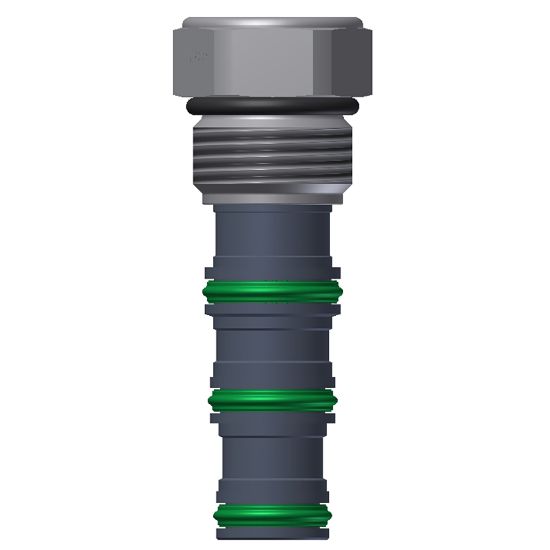

Parker P10-4V - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P10-4V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Number of Positions	4 way	Valve Material	All parts steel. All operating parts hardened steel
Body Material	n/a	Seal Material	Fluorocarbon
Division	Hydraulic Systems Division	Actuation Type	n/a
Division	Hydraulic Cartridge Systems Division	Cavity Size	C10
Maximum Flow Rate	n/a	Operating Temperature	-15 to +400 °F
Weight	0.18 kg	Minimum Operating Temperature	-15 °F
Flow Rate	n/a	Maximum Operating Pressure	5000 psi
Maximum Operating Temperature	+400 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Configuration	All ports blocked	Installation Torque	75 Nm
Seal Material	Fluorocarbon	Type/Configuration	All ports blocked
Cavity Size	C10	Number of Positions	4 way
