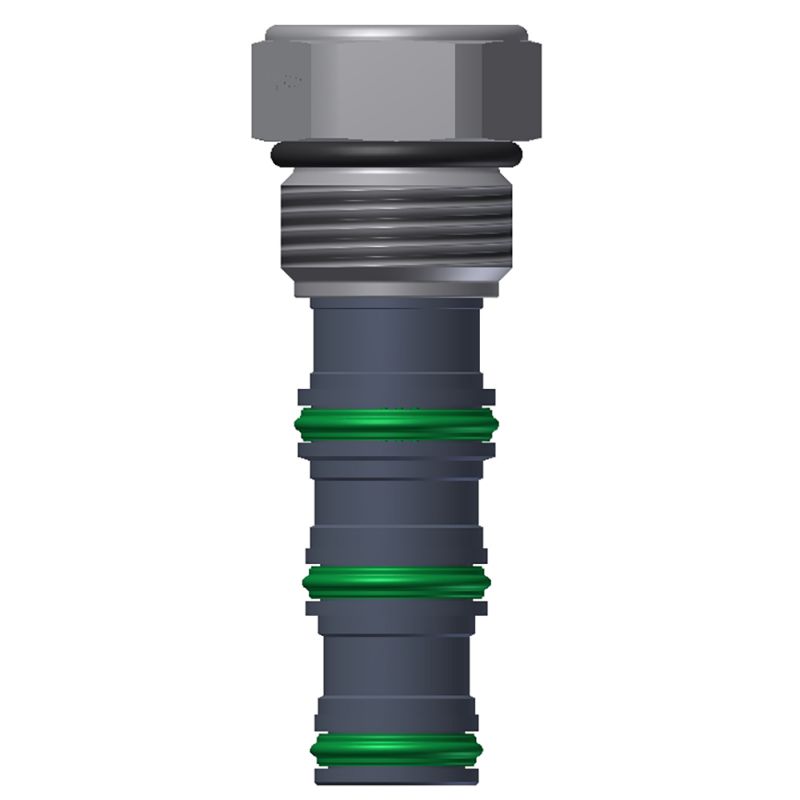

Parker P10-4 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P10-4

$91.13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	n/a
Actuation Type	n/a	Seal Material	Nitrile
Minimum Operating Temperature	-30 °F	Installation Torque	75 Nm
Operating Temperature	-30 to +250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Pressure	350 bar	Valve Material	All parts steel. All operating parts hardened steel
Cavity Size	C10	Body Material	n/a
Number of Positions	4 way	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Flow Rate	n/a
Maximum Operating Temperature	+250 °F	Weight	0.41 lb
Configuration	All ports blocked	Type/Configuration	All ports blocked
Number of Positions	4 way	Cavity Size	C10
Seal Material	Nitrile
