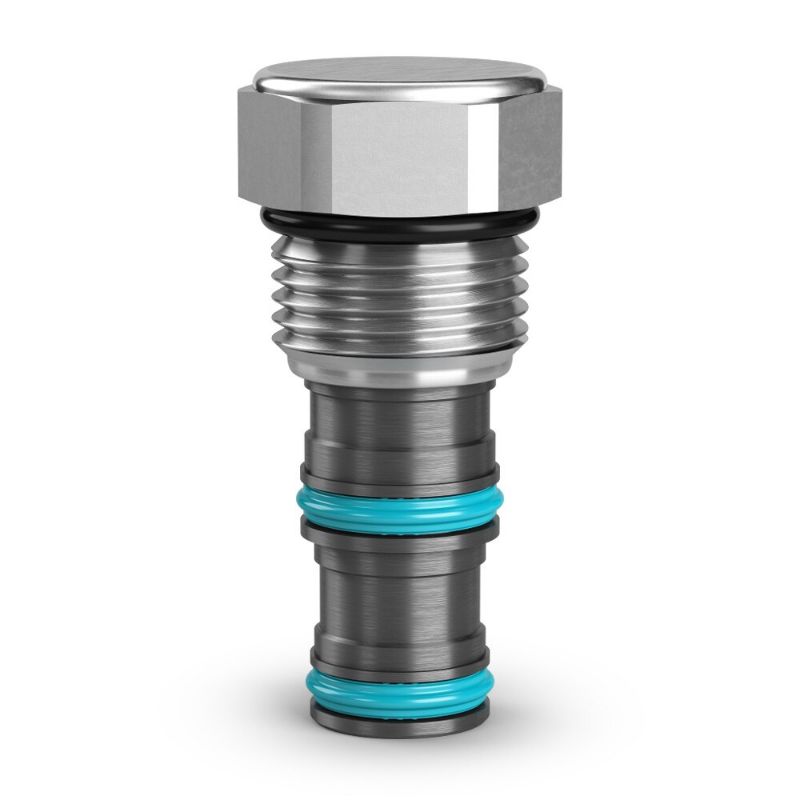

Parker P10-3AV - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P10-3AV

$96.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Installation Torque	75 Nm
Minimum Operating Temperature	-15 °F	Division	Hydraulic Systems Division
Actuation Type	N/A	Flow Rate	N/A
Maximum Flow Rate	N/A	Body Material	N/A
Operating Temperature	-26 to +204 °C	Number of Positions	3 way
Division	Hydraulic Cartridge Systems Division	Configuration	Port 3 blocked
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Cavity Size	C10
Maximum Operating Temperature	+400 °F	Weight	0.18 kg
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Pressure	5000 psi	Cavity Size	C10
Type/Configuration	Port 3 blocked	Seal Material	Fluorocarbon
Number of Positions	3 way
