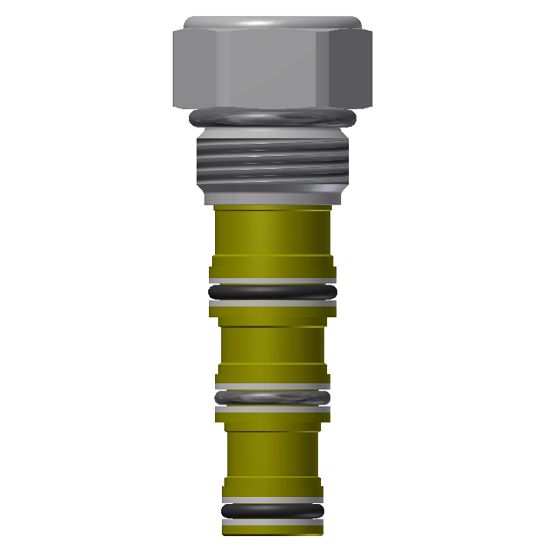

Parker P08-4BV - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P08-4BV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	n/a	Cavity Size	C08
Maximum Flow Rate	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Fluorocarbon
Number of Positions	4 way	Division	Hydraulic Systems Division
Body Material	n/a	Maximum Operating Pressure	350
Flow Rate	n/a	Operating Temperature	-26 to +204
Weight	0.64	Configuration	Port 3 blocked
Maximum Operating Temperature	+400	Division	Hydraulic Valve Systems Division
Installation Torque	36	Minimum Operating Temperature	-15
Seal Material	Fluorocarbon	Cavity Size	C08
Number of Positions	4 way	Type/Configuration	Port 3 blocked
