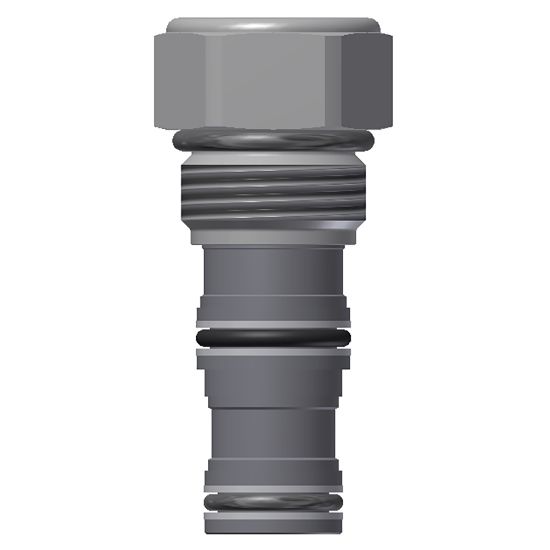

Parker P08-3B - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P08-3B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	+250 °F	Minimum Operating Temperature	-30 °F
Operating Temperature	-30 to +250 °F	Division	Hydraulic Systems Division
Actuation Type	n/a	Configuration	Port 2 blocked
Cavity Size	C08	Maximum Flow Rate	n/a
Seal Material	Nitrile	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Number of Positions	3 way
Weight	0.11 kg	Maximum Operating Pressure	5000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Flow Rate	n/a	Installation Torque	36 lb-ft
Number of Positions	3 way	Type/Configuration	Port 2 blocked
Cavity Size	C08	Seal Material	Nitrile
