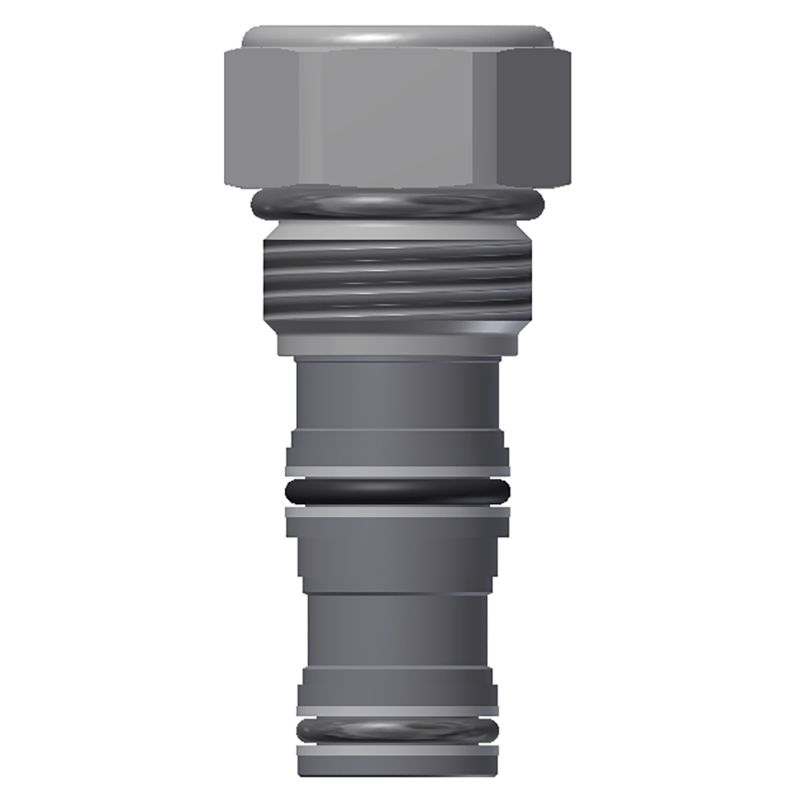

Parker P08-3A - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P08-3A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Installation Torque	36 lb-ft
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Minimum Operating Temperature	-34 °C
Operating Temperature	-34 to +121 °C	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Body Material	n/a
Actuation Type	n/a	Seal Material	Nitrile
Maximum Flow Rate	n/a	Cavity Size	C08
Weight	0.25 lb	Maximum Operating Temperature	+121 °C
Maximum Operating Pressure	5000 psi	Configuration	Port 3 blocked
Number of Positions	3 way	Valve Material	All parts steel. All operating parts hardened steel
Type/Configuration	Port 3 blocked	Seal Material	Nitrile
Cavity Size	C08	Number of Positions	3 way
