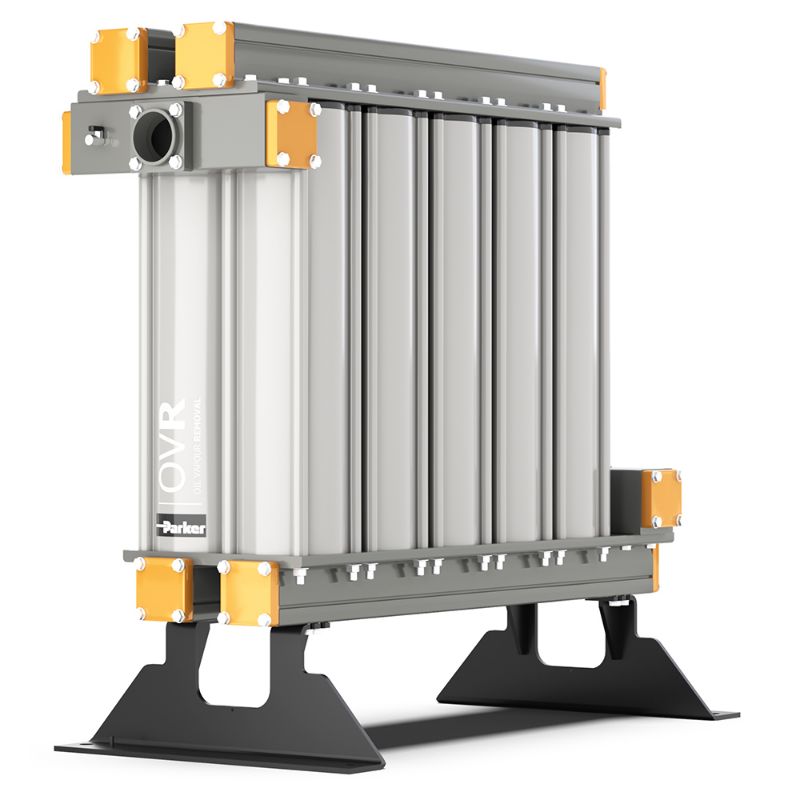

Parker OVRP550IGXX - OIL-X OVR Oil Vapour Reduction Filter

Compact, modular construction oil vapour removal filters designed to reduce oil vapour when industrial applications require compressed air to meet ISO8573-1 Class 0 or Class 1.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. OVRP550IGXX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Application	Compressed Air and Nitrogen Gas Applications	Division	Gas Separation and Filtration Division EMEA
Micron Rating	n/a	Drain	Not Applicable
Filter Type	Adsorption:<br/>Oil Vapour Reduction	Product Type	Compressed Air Filter
Residual Oil Content	≤0.003 mg/m³ / ≤0.003 ppm(w) at system operating temperature and when corrected to match system conditions.	Operating Pressure	1 to 16 barg
Operating Temperature	2 to 50 °C	Width	21.7 inch
Height	1062.0 mm	Weight	377 lb
Specifications Met	Fully tested - In accordance with ISO8573-5<br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II	Depth	46.2 inch
Product Series	OIL-X OVR	Compatible Element	P550OVR
Pressure Differential	350.0 mbar Initial Dry, 100% Flow	Element Change Interval	12 months when sized to correct operating temperature and system conditions.
Connection Type	BSPP	Port Size	2½ inch
Maximum Flow Rate	1172 m³/h @ 7 barg (690 cfm @ 102 psig)
