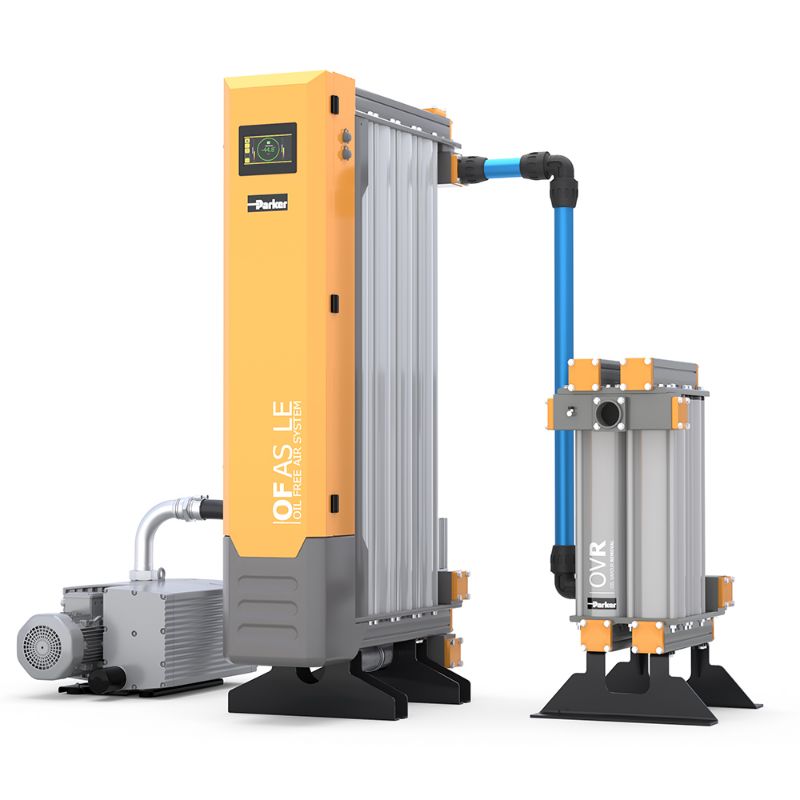

Parker OFASLE120-70G13BC - OFAS HL/LE 100-170 Large Flow Heatless Regeneration Compressed Air Treatment System

Large flow compressed air treatment systems with oil vapour reduction delivering ‘technically oil-free air’ for general industrial, automotive, electronics and semiconductor manufacturing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. OFASLE120-70G13BC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Ingress Protection Rating	IP44	Operating Temperature	5 to 50 °C
Noise Level	< 75 dBA	Ambient Temperature	55.0 °C Maximum
Depth	21.7 inch	Width	856.0 mm
Height	1647.0 mm	Weight	782 lb
Industry	• General Industrial Manufacturing<br/>• Automotive<br/>• Electronics & Semiconductor Manufacturing	Product Style	Vacuum Assisted Heatless Regeneration
Operating Pressure	5 to 13 barg	Specifications Met	PED 2014/68/EU
Power Supply Voltage	400.0 VAC (±10%) three-phase, 50Hz (Standard)	Product Type	Compressed Air Dryer with Oil Vapour Reduction and Filtration
Carbon Adsorption Filter Included	OVR400IGXX	Application	Compressed Air Treatment - Clean Dry, Oil-Free Air
Product Series	OFAS - Oil Free Air System - Large Flow, Low Energy Heatless (Models OFAS LE 100-170)	Filter Included	General Purpose Coalescing Filter<br/>AOPX045HGFX<br/><br/>High Efficiency Coalescing Filter<br/>AAPX045HGFX<br/><br/>General Purpose Dry Particulate Filter<br/>AAPX045HGFX
Connection Type	BSPP	Port Size	2½"
Pressure Dew Point	-70°C (-100°F)	Flow Rate	536 m³/h/hr @ 7 barg, 35°C (315 cfm @ 102 psig, 95°F)
Pump Type	Vacuum: HLVAP-OL-02-120 (Order Separately)	ISO Grade	Class 2.1.0
