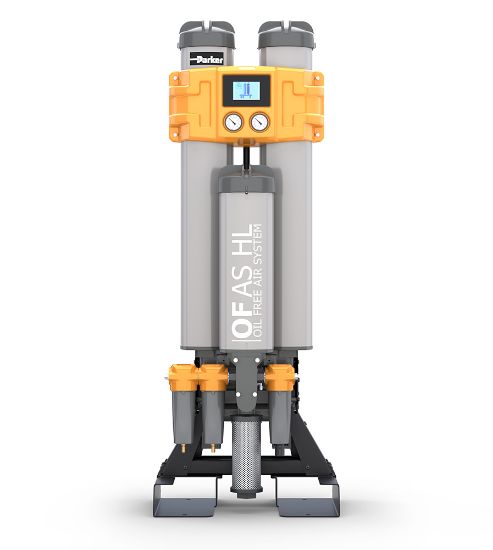

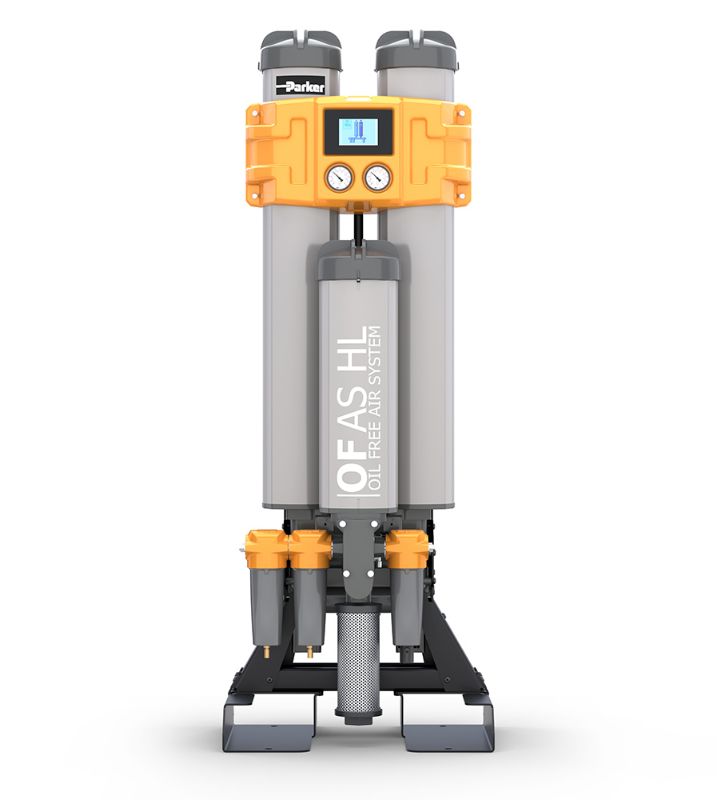

Parker OFASHL050-70G16AE - OFAS HL Medium Flow Oil Free Heatless Compressed Air Dryer System

Medium flow compressed air treatment systems with oil vapour removal, providing ISO 8573-1 Class 0 air at flow rates up to 300 m³/hr @ 7 barg. Suitable for all industrial compressed air applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. OFASHL050-70G16AE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Operating Temperature	41 to 122 °F	Operating Pressure	4 to 16 barg
Specifications Met	PED 2014/68/EU Fluid Group II	Application	Compressed Air Applications
Noise Level	< 75 dBA	Product Type	Compressed Air Dryer
Ambient Temperature	131.0 °F Maximum	Ingress Protection Rating	IP55 Indoor Use Only
Depth	20.2 inch	Width	22 inch
Height	1133.0 mm	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Product Style	Heatless	Weight	198 lb
Product Series	OFAS	Connection Type	BSPP
Port Size	½ inch	Pressure Dew Point	-70°C (-100°F)
Electrical Requirements	85 - 265V 1ph 50/60Hz	Flow Rate	56 m³/h @ 7 barg (32 cfm @ 102 psig)
ISO Grade	Class 2.1.0
