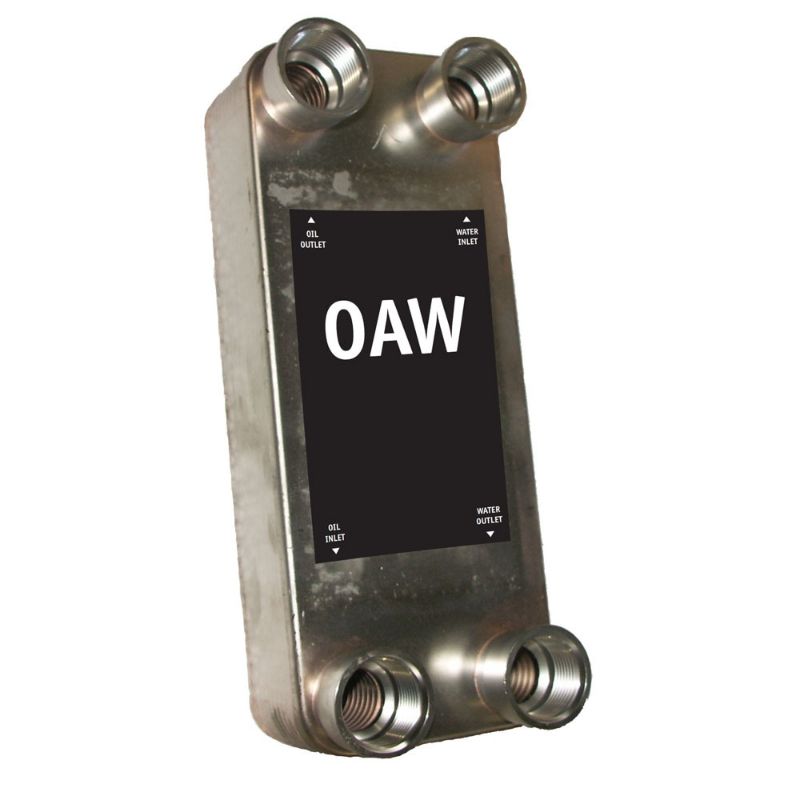

Picture of Parker OAW 34-20 - Water Oil Cooler - Brazed Plate OAW Series - (Americas)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker OAW 34-20 - Water Oil Cooler - Brazed Plate OAW Series - (Americas)

The OAW Series of water oil coolers offers rugged, brazed plate construction; providing the highest performance and most compact size available.
Availability:
Quote Required
Partner Available:2 Limited Stock
Brand Parker
Part No. OAW 34-20
$1,370.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort Size1
Materials of ConstructionStainless Steel AISI 316Weight4.1 kg
DivisionAccumulator and Cooler DivisionMaximum Operating Pressure450 psi
Maximum Flow Rate24 Gal/minFor Fluid TypeOil Side: Mineral Oil, Oil/Water Emulsion, Water Glycol, Phosphate Ester
Operating Temperature-196 to 224 °CWidth120 mm
Height87 mmLength290 mm
Connection Thread Size1-5/16"-12 inchMaximum Cooling Capacity24.7 kW
SizeOAW-34-20
