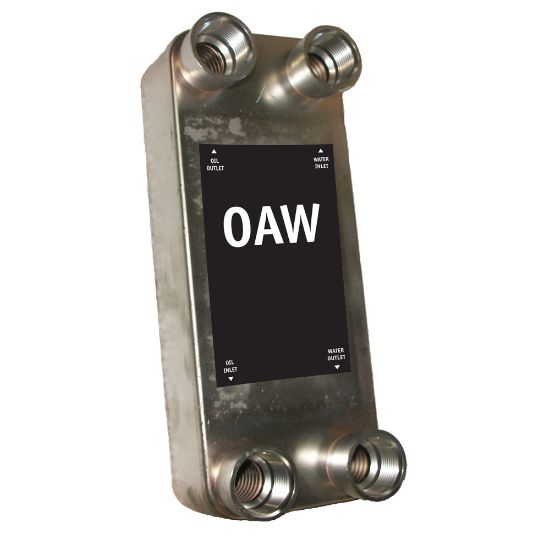

Parker OAW 126-60 - Water Oil Cooler - Brazed Plate OAW Series - (Americas)

The OAW Series of water oil coolers offers rugged, brazed plate construction; providing the highest performance and most compact size available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. OAW 126-60

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	1-1/2	Materials of Construction	Stainless Steel AISI 316
Division	Accumulator and Cooler Division	Maximum Operating Pressure	450 psi
Maximum Flow Rate	120 Gal/min	Weight	79 lb
For Fluid Type	Oil Side: Mineral Oil, Oil/Water Emulsion, Water Glycol, Phosphate Ester	Operating Temperature	-196 to 224 °C
Width	244 mm	Height	7.2 inch
Length	20.7 inch	Connection Thread Size	1-7/8"-12 inch
Maximum Cooling Capacity	193.2 kW	Size	OAW-126-60

Product resources

Literature and Reference Materials

Industrial and Mobile Coolers Catalog - HY10-1700 (PDF)
