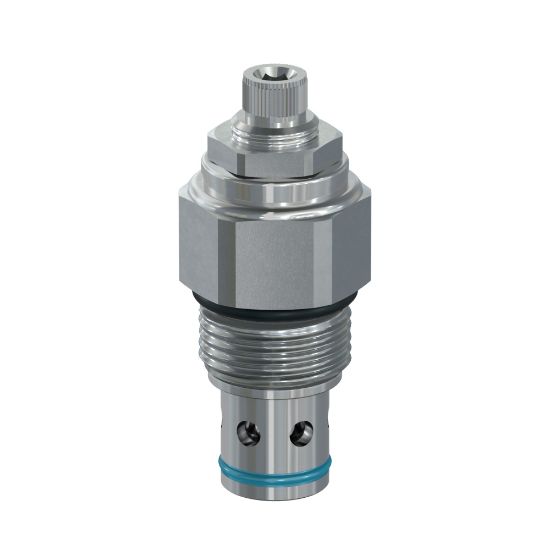

Parker NVH101FT - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NVH101FT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Function	2-Way
Actuation Type	Manual	Weight	0.18 kg
Needle Type	Fine	Adjustment Mechanism	Tamper Resistant
Cavity Size	C10-2	Seal Material	D-Ring (Standard)
Maximum Inlet Pressure Rating	5500 psi	Flow Rate	16 Gal/min
Maximum Flow Rate	60 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-37 to +93 °C	Maximum Operating Temperature	+93 °C
Installation Torque	37-41 lb-ft	Operation Type	Manually operated
Maximum Operating Pressure	380 bar	Configuration	Needle
Leak Rate	5 @ 5000 PSI (345 BAR) drops/min	Needle Type	Fine
Adjustment Mechanism	Tamper Resistant	Seal Material	D-Ring (Standard)
Flow Rate	16 GAL/MIN, 60 L/MIN	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
