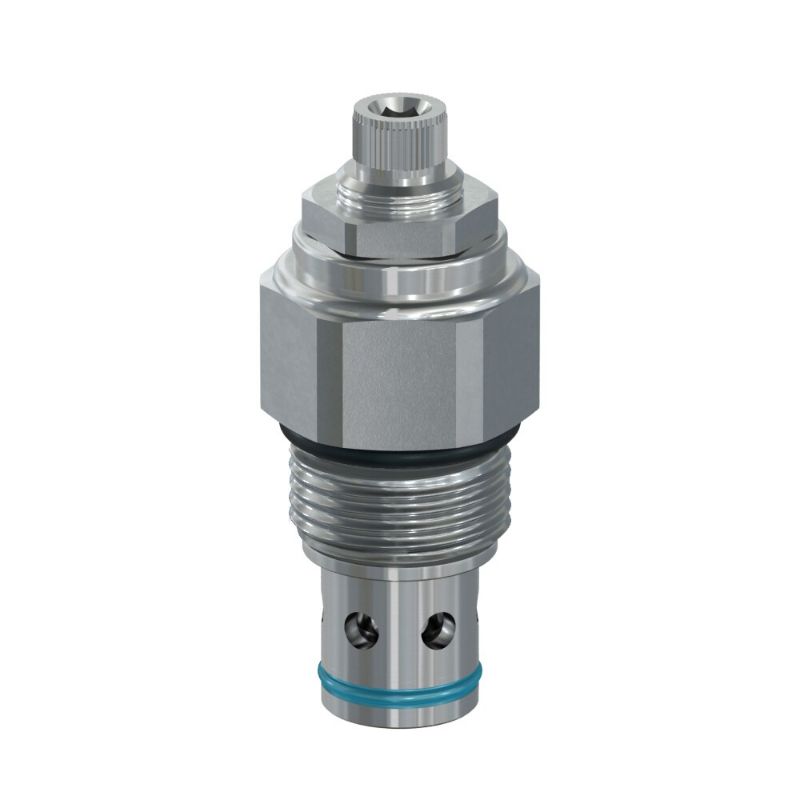

Parker NVH101FKN - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NVH101FKN

$67.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	N/A
Cavity Size	C10-2	Division	Hydraulic Cartridge Systems Division
Maximum Operating Temperature	+250 °F	Needle Type	Fine
Leak Rate	5 @ 5000 PSI (345 BAR) drops/min	Adjustment Mechanism	Knob
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Inlet Pressure Rating	5500 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Needle	Function	2-Way
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Flow Rate	60 L/min
Seal Material	Nitrile	Actuation Type	Manual
Weight	0.18 kg	Maximum Operating Pressure	5500 psi
Connection Size	N/A	Maximum Flow Rate	60 L/min
Operation Type	Manually operated	Body Material	N/A
Installation Torque	50-56 Nm	Minimum Operating Temperature	-30 °F
Division	Hydraulic Systems Division	Operating Temperature	-34 to +121 °C
Seal Material	Nitrile	Needle Type	Fine
Adjustment Mechanism	Knob	Flow Rate	10 GAL/MIN, 38 L/MIN
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
