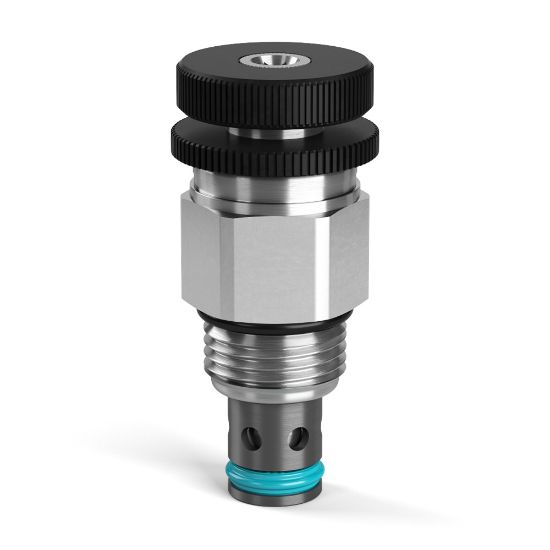

Parker NVH081FTV - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NVH081FTV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5500 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Function	2-Way
Actuation Type	Manual	Weight	0.1 kg
Needle Type	Fine	Cavity Size	C08-2
Adjustment Mechanism	Tamper Resistant	Flow Rate	10 Gal/min
Maximum Inlet Pressure Rating	5500 psi	Maximum Flow Rate	38 L/min
Maximum Operating Temperature	+204 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Installation Torque	31-37 Nm
Operation Type	Manually operated	Configuration	Needle
Leak Rate	5 @ 5000 PSI (345 BAR) drops/min	Seal Material	Fluorocarbon
Needle Type	Fine	Adjustment Mechanism	Tamper Resistant
Flow Rate	10 GAL/MIN, 38 L/MIN	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
