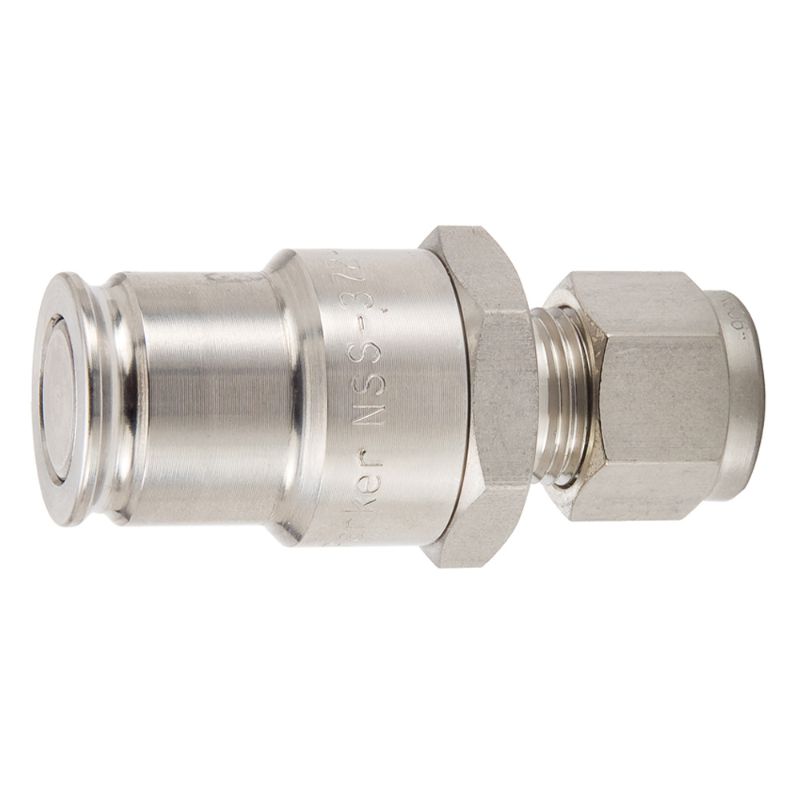

Parker NSS-372-6MA - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NSS-372-6MA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	2000 psi	Product Type	Push-to-Connect
Flow Rate	10 Gal/min	Maximum Operating Temperature	250 °F
Body Material	Stainless Steel	Connection Type	Female Thread
Valve Type	Flat Face	Seal Material	EPDM
Minimum Operating Temperature	-70 °F	Division	Quick Coupling Division
Application	Liquid Cooling	Hex Size	0.94 inch
Body Size (inch)	3/8	Coupling Half	Male Nipple
Connection Thread Size (inch)	3/8 A-Lok	Hose I.D.	NA
