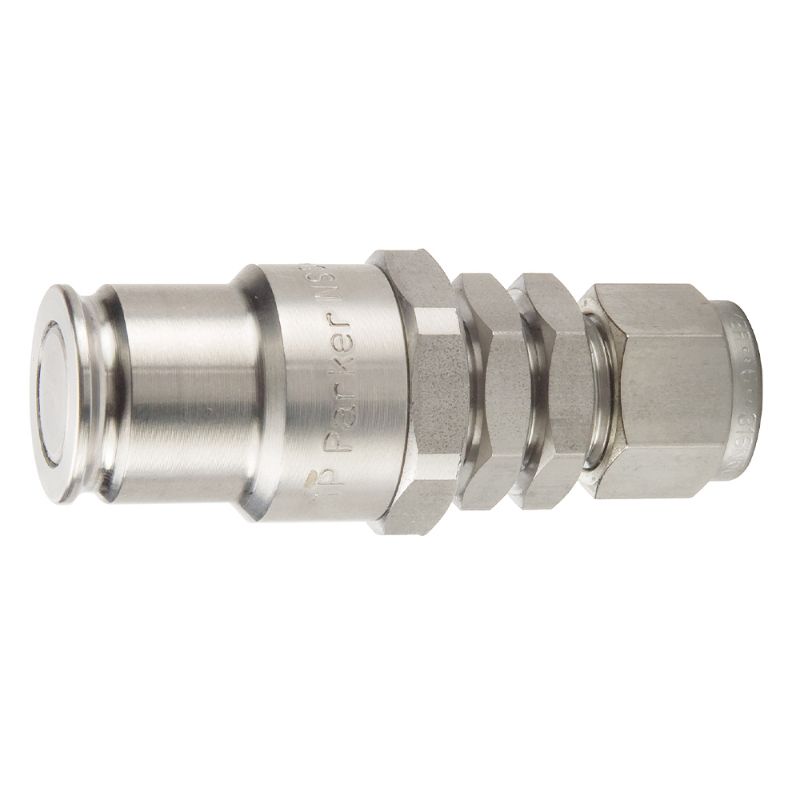

Parker NSS-372-6HMA - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NSS-372-6HMA

$156.62

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	0.94
Seal Material	EPDM	Body Material	Stainless Steel
Maximum Operating Temperature	250	Maximum Operating Pressure	2000
Flow Rate	10	Division	Quick Coupling Division
Valve Type	Flat Face	Connection Type	Female Thread - Panel Mount
Product Type	Push-to-Connect	Minimum Operating Temperature	-70
Application	Thermal Management	Hose I.D.	NA
Coupling Half	Male Nipple	Connection Thread Size (inch)	3/8 A-Lok
Body Size (inch)	3/8

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
