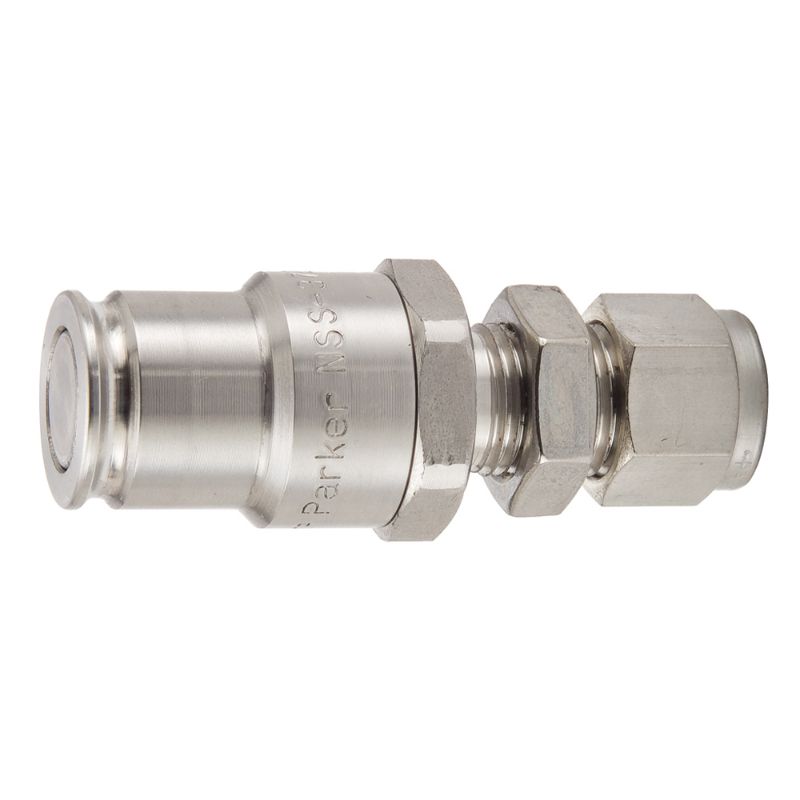

Picture of Parker NSS-372-6BMA - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker NSS-372-6BMA - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.
AFP Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. NSS-372-6BMA
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Valve TypeFlat FaceFlow Rate10 Gal/min
Maximum Operating Pressure2000 psiSeal MaterialEPDM
Body MaterialStainless SteelHex Size0.94 inch
Minimum Operating Temperature-70 °FApplicationLiquid Cooling
Product TypePush-to-ConnectDivisionQuick Coupling Division
Maximum Operating Temperature250 °FConnection TypeFemale Thread - Bulkhead Mount
Body Size (inch)3/8Coupling HalfMale Nipple
Connection Thread Size (inch)3/8 A-LokHose I.D.NA
