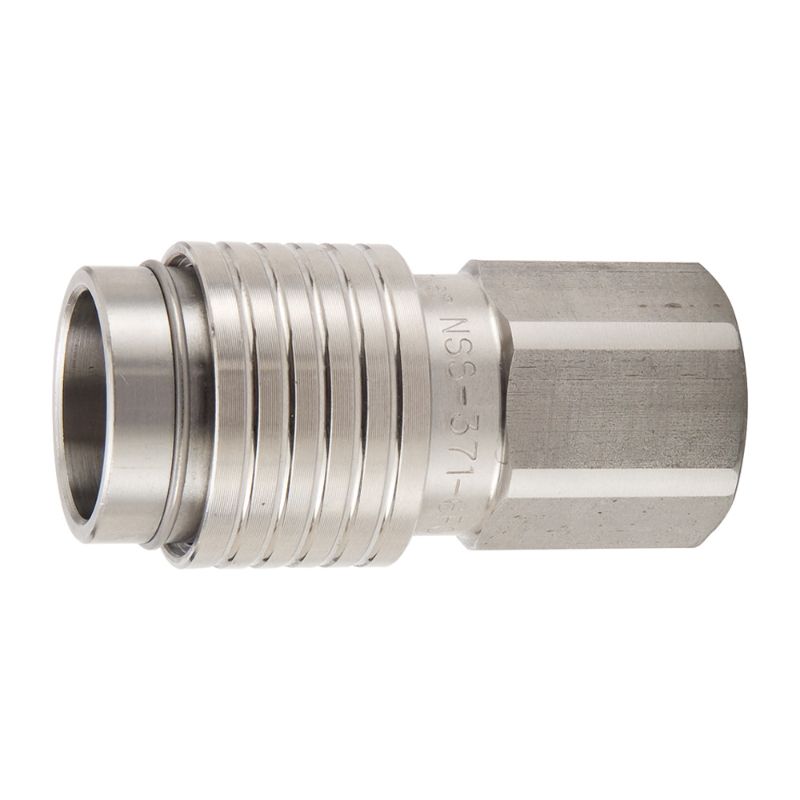

Parker NSS-371-8FO - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NSS-371-8FO

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Flat Face	Hex Size	0.94 inch
Minimum Operating Temperature	-70 °F	Division	Quick Coupling Division
Seal Material	EPDM	Application	Liquid Cooling
Connection Type	Female Thread	Maximum Operating Pressure	2000 psi
Product Type	Push-to-Connect	Flow Rate	10 Gal/min
Body Material	Stainless Steel	Maximum Operating Temperature	250 °F
Connection Thread Size (inch)	3/4 - 16 UNF	Coupling Half	Female Coupler
Hose I.D.	NA	Body Size (inch)	3/8

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
