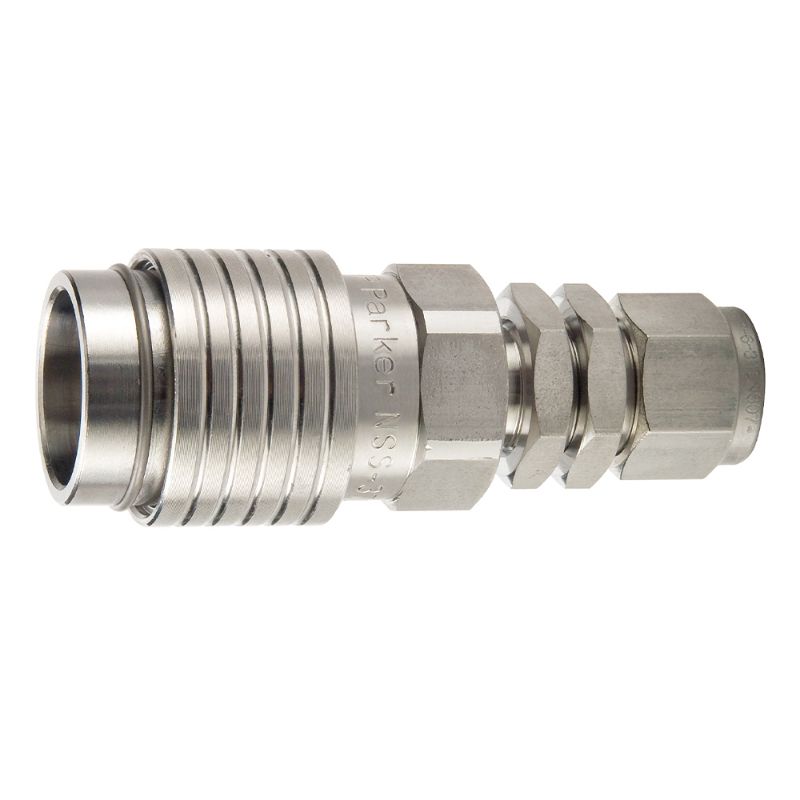

Parker NSS-371-6HMA - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NSS-371-6HMA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Body Material	Stainless Steel
Seal Material	EPDM	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	2000 psi	Product Type	Push-to-Connect
Hex Size	0.94 inch	Minimum Operating Temperature	-70 °F
Valve Type	Flat Face	Flow Rate	10 Gal/min
Application	Liquid Cooling	Connection Type	Female Thread - Panel Mount
Body Size (inch)	3/8	Coupling Half	Female Coupler
Hose I.D.	NA	Connection Thread Size (inch)	3/8 A-Lok

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
