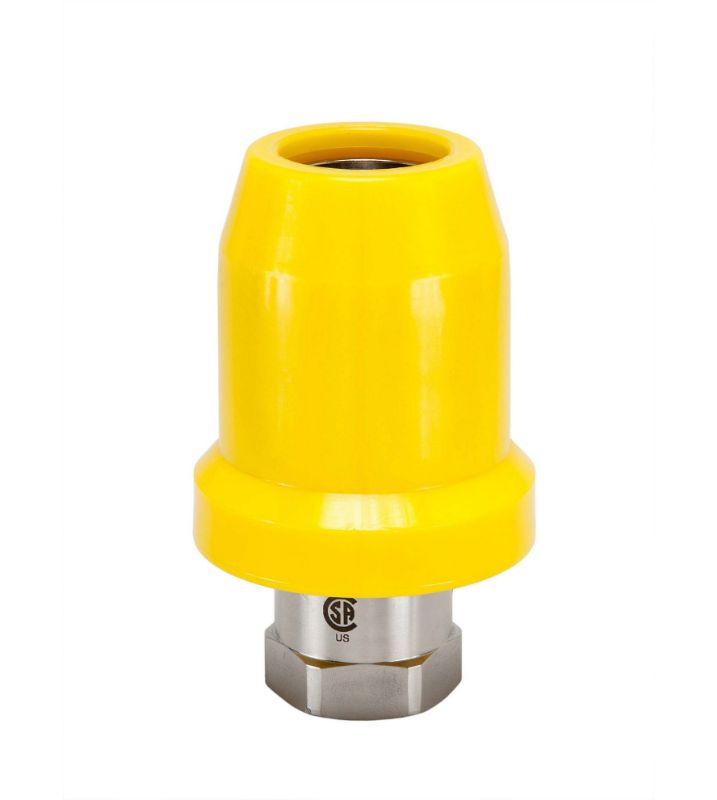

Parker NGVC2-P36 - CNG Push-to-Connect Fueling Nozzles - NGV Nozzles Series

Located on CNG fueling dispensers, Parker’s NGVC2 Nozzle easily connects with FMS Series receptacles and others certified to ANSI/CSA/NGV1 standards

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. NGVC2-P36

$383.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless Steel
Minimum Operating Temperature	-40 °F	Fitting Connection Type	UNF
Sleeve Type	Non-marring polyurethane	Division	Quick Coupling Division
Connection Type	Push-to Connect	Maximum Operating Temperature	185 °F
Connection Thread Size	9/16 - 18 inch	Lock Type	Ball Lock
Flow Rate	2100 SCFM	Specifications Met	ANSI/CSA NGV1 certified
Maximum Operating Pressure	248 bar	Seal Material	Nitrile and Urethane
Maximum Operating Pressure	3600 PSI
