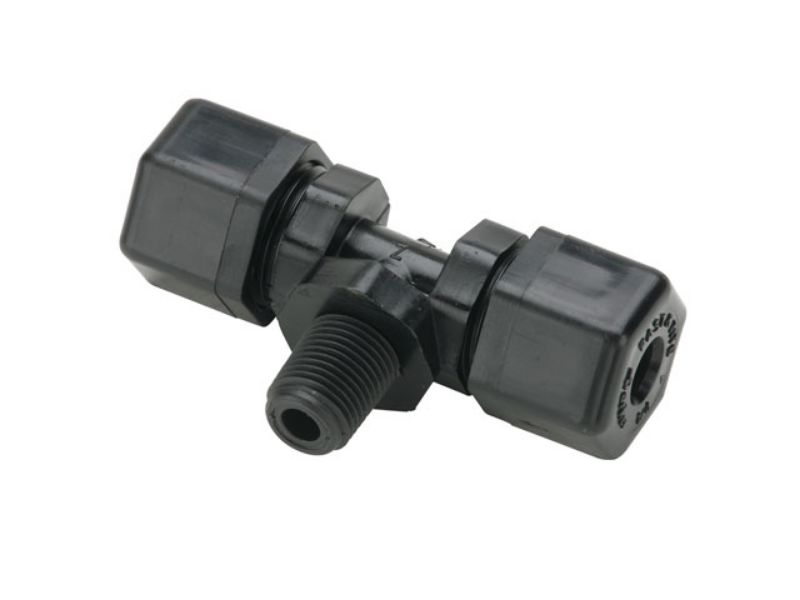

Parker N5MT2 - Fast & Tite MT

Male Branch Tee - Fast & Tite

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N5MT2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pkg Qty/UOM	10 EA	Material	Nylon
Color	White	Outer Diameter 1	5/16 Inch
Pkg Qty	10	UOM	EA
Thread 1	1/8 NPT	Configuration Sub-Type	Male Branch Tee
Color	White	Inch/Metric	Inch
Material - Seal	Nitrite (Buna N)	Material	Nylon
Parker Group	Fluid Connector	Pressure Range	See Catalog
Outer Diameter 1	5/16 Inch	Parker Division	Fluid Systems Connector (Brass Products)
Operating Temperature	-40˚ to +200˚F	Thread 1	1/8 NPT
Series	Fast & Tite	Configuration Type	Tube to Male
Trade Name	Fast & Tite	Outer Diameter 1 Inch/mm	Inch
Thread 1 Type	NPT

Product resources

Water & Beverage Fittings and Valves (PDF)
