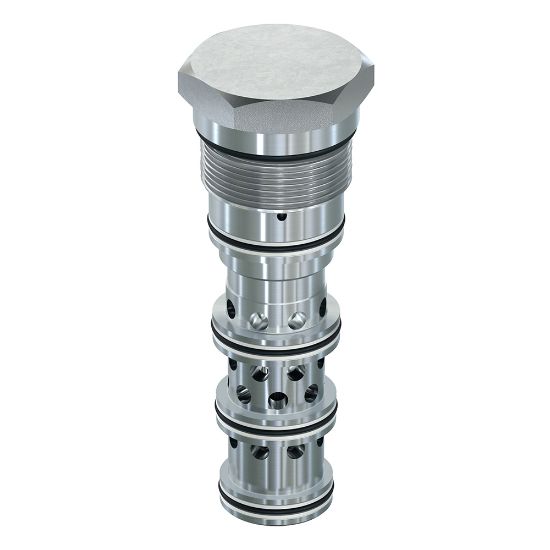

Parker N5B300-3.0V - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N5B300-3.0V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Systems Division	Operation Type	Pilot Operated
Pilot Location	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Maximum Operating Pressure	6000
Maximum Inlet Pressure Rating	6000	Drain Option	External
Function	Diverter	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-15 to +400	Maximum Operating Temperature	+400
Flow Direction	2-3 Neutral, 3-4 Piloted	Weight	2.2
Cavity Size	100-1	Actuation Type	Switching
Maximum Flow Rate	105	Flow Rate	105
Leak Rate	400 @ 2900 PSI (200 BAR)	Configuration	Closed Transition
Switching Pressure	44	Installation Torque	118
Standard Flow Rate Setting	71	Seal Material	Fluorocarbon
Flow Direction	2-3 Neutral, 3-4 Piloted	Configuration	Closed Transition
Flow Rate	105 GAL/MIN, 400 L/MIN	Switching Pressure	44 PSI, 3 BAR
Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN
