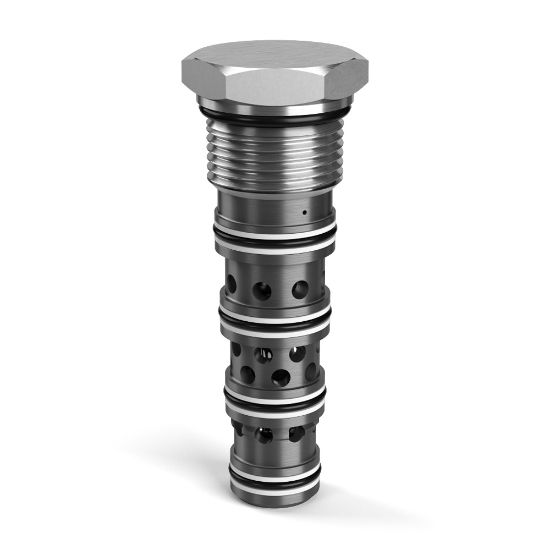

Parker N5B125-10.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N5B125-10.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Weight	0.33 kg
Body Material	n/a	Division	Hydraulic Systems Division
Operation Type	Pilot Operated	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Pressure	420 bar	Maximum Inlet Pressure Rating	420 bar
Maximum Flow Rate	42 Gal/min	Drain Option	External
Function	Diverter	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Direction	2-3 Neutral, 3-4 Piloted	Installation Torque	63 lb-ft
Cavity Size	5A	Switching Pressure	10 bar
Actuation Type	Switching	Flow Rate	42 Gal/min
Leak Rate	275 @ 2900 PSI (200 BAR) cm3/min	Configuration	Closed Transition
Standard Flow Rate Setting	24 Gal/min	Seal Material	Nitrile
Flow Rate	42 GAL/MIN, 160 L/MIN	Flow Direction	2-3 Neutral, 3-4 Piloted
Switching Pressure	145 PSI, 10 BAR	Configuration	Closed Transition
Standard Flow Rate Setting	24 GAL/MIN, 90 L/MIN
