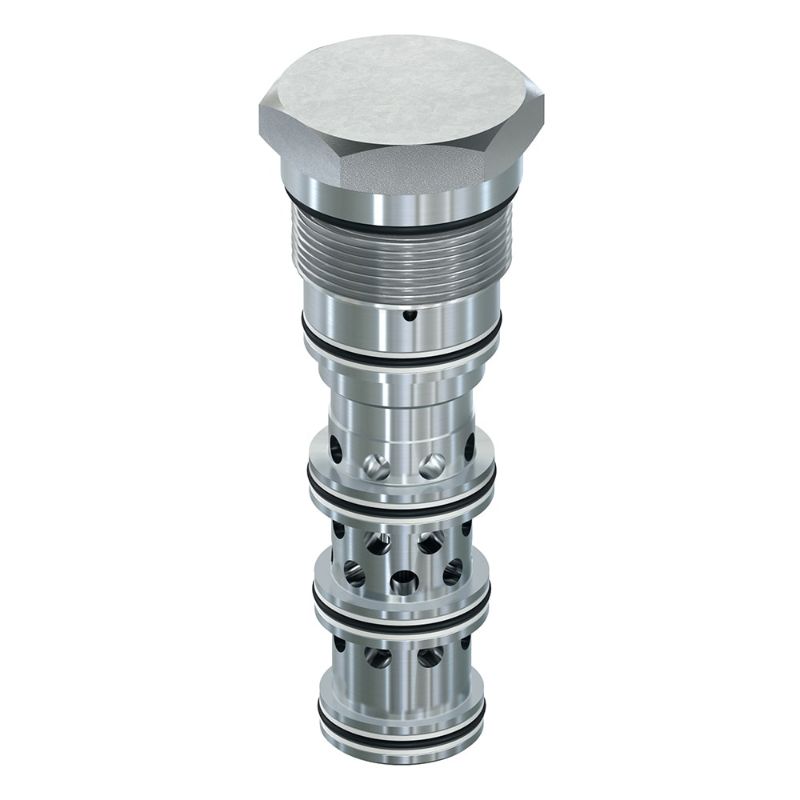

Parker N5A300-10.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N5A300-10.0N

$351.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	6000 psi
Division	Hydraulic Systems Division	Operation Type	Pilot Operated
Pilot Location	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Weight	2.2 lb
Maximum Inlet Pressure Rating	6000 psi	Drain Option	External
Function	Diverter	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Direction	2-3 Neutral, 3-4 Piloted	Flow Rate	105 Gal/min
Cavity Size	100-1	Configuration	Open Transition
Switching Pressure	10 bar	Actuation Type	Switching
Maximum Flow Rate	105 Gal/min	Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min
Installation Torque	118 lb-ft	Standard Flow Rate Setting	71 Gal/min
Seal Material	Nitrile	Flow Direction	2-3 Neutral, 3-4 Piloted
Switching Pressure	145 PSI, 10 BAR	Configuration	Open Transition
Flow Rate	105 GAL/MIN, 400 L/MIN	Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN
