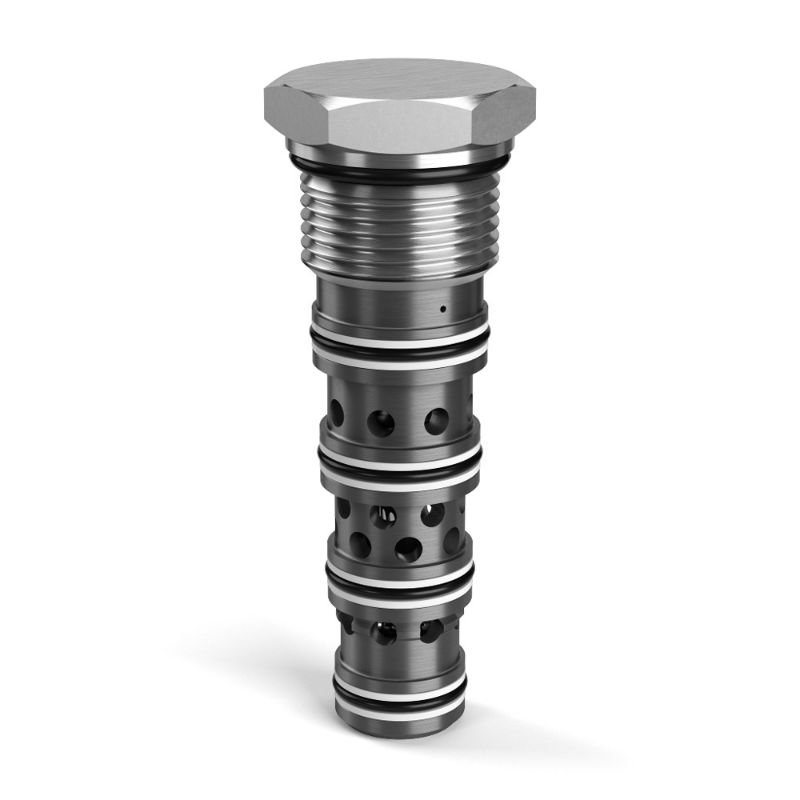

Parker N5A125-6.9V - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N5A125-6.9V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.33 kg	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	6000 psi
Division	Hydraulic Systems Division	Operation Type	Pilot Operated
Pilot Location	External	Switching Pressure	6.9 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Maximum Inlet Pressure Rating	420 bar	Flow Rate	160 L/min
Maximum Flow Rate	160 L/min	Drain Option	External
Function	Diverter	Maximum Operating Temperature	+400 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Direction	2-3 Neutral, 3-4 Piloted	Installation Torque	63 lb-ft
Cavity Size	5A	Configuration	Open Transition
Actuation Type	Switching	Leak Rate	275 @ 2900 PSI (200 BAR) cm3/min
Standard Flow Rate Setting	90 L/min	Seal Material	Fluorocarbon
Switching Pressure	100 PSI, 6.9 BAR	Flow Rate	42 GAL/MIN, 160 L/MIN
Flow Direction	2-3 Neutral, 3-4 Piloted	Configuration	Open Transition
Standard Flow Rate Setting	24 GAL/MIN, 90 L/MIN
