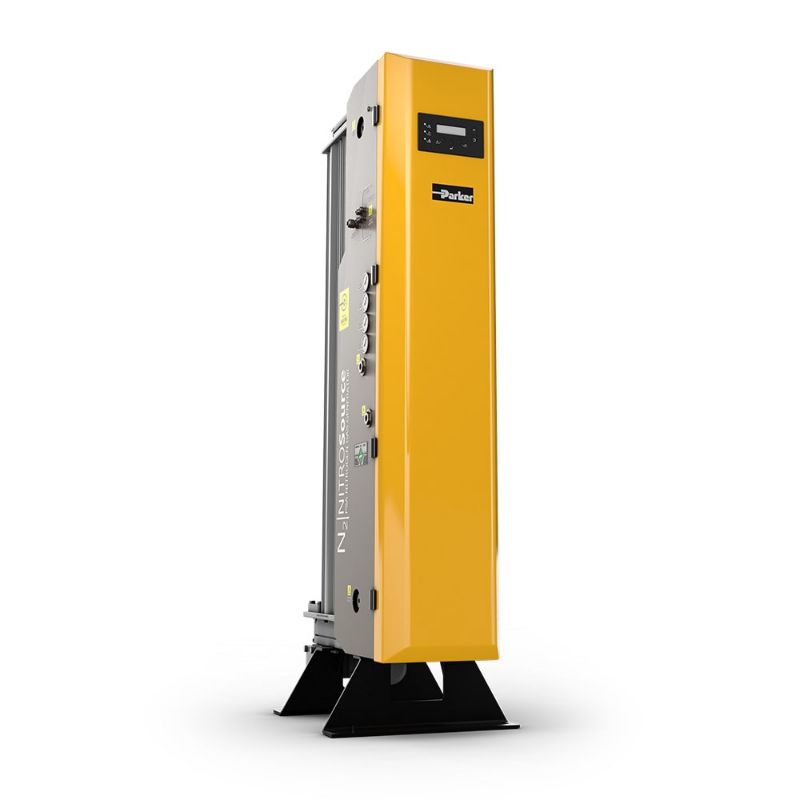

Parker N2-20PXLN - NITROSource PSA Nitrogen Gas Generator (5% to 5 ppm maximum remaining oxygen content) for North America

Advanced technology nitrogen gas generator for industry leading performance; a source of increased productivity, sustainability and profitability. NITROSource provides nitrogen gas of 95% to 99.9995% equivalent nitrogen purity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N2-20PXLN

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Application	Industrial	Gas Type Generated	Nitrogen
Electrical Requirements	YES	Product Type	Nitrogen Gas Generator
Product Series	NITROSource PSA	Flow Rate	3.5 to 4.5
Gas Purity	Ultra High	Energy Saving	No
Width	21.7 in (550 mm)	Weight	659 lb (299 Kg)
Noise Level	< 80	Height	74.6 in (1894 mm)
Outlet Port Size	1/2	Ingress Protection Rating	IP20 / NEMA 1
Inlet Pressure Rating	73-189 psi g (5-13 bar g)	Inlet Port Size	1
Port Type	NPT	Oxygen Content	5 ppm to 10 ppm
Division	Industrial Gas Filtration & Generation	Input Voltage	100 - 240 +/- 10% Vac 50/60Hz
Division	Industrial Gas Filtration and Generation Division	Ambient Temperature	41-122°F (5 - 50°C)
Inlet Air Quality Specifications	ISO 8573-1: 2010 Class 2.2.2 (2.2.1 with high oil vapor content)	Industry	Filtration
Depth	34.7 in (881 mm)	Flow Range	Low (Less than 2119 SCFH)
Energy Saving	No	Oxygen Content	5 to 10 ppm
Gas Purity	Ultra High (5 ppm to 10 ppm	Flow Rate	124 to 159 SCFH @ 101.5 psi g (7 bar g)
