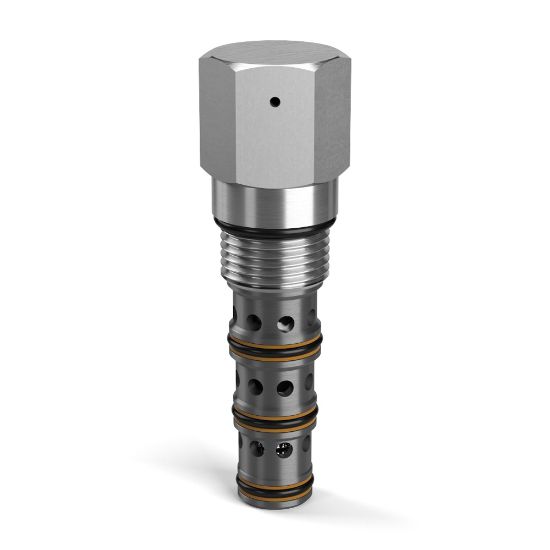

Parker N04H4-15.0VS - 3 Way Pilot Operated Directional Control Valves

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N04H4-15.0VS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	22.5	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	3-4 Neutral, 2-3 Piloted	Body Material	n/a
Seal Material	Fluorocarbon	Operating Temperature	-15 to +400
Leak Rate	55 @ 1450 PSI (100 BAR)	Installation Torque	37
Sealed Pilot Included	Yes	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.48	Cavity Size	C10-4
Configuration	Open Transition	Switching Pressure	218
Division	Mobile Hydraulic Systems Division Europe	Pilot Location	External
Standard Flow Rate Setting	13	Maximum Flow Rate	24
Function	Directional Control	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	Pilot to shift	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	6000	Drain Option	Vent to Atmosphere
Operation Type	Pilot Operated	Maximum Operating Temperature	+400
Minimum Operating Temperature	-15	Maximum Operating Pressure	6000
Flow Direction	3-4 Neutral, 2-3 Piloted	Configuration	Open Transition
Seal Material	Fluorocarbon	Sealed Pilot Included	Yes
Flow Rate	22.5 GAL/MIN, 85 LPM	Switching Pressure	218 PSI, 15 BAR
