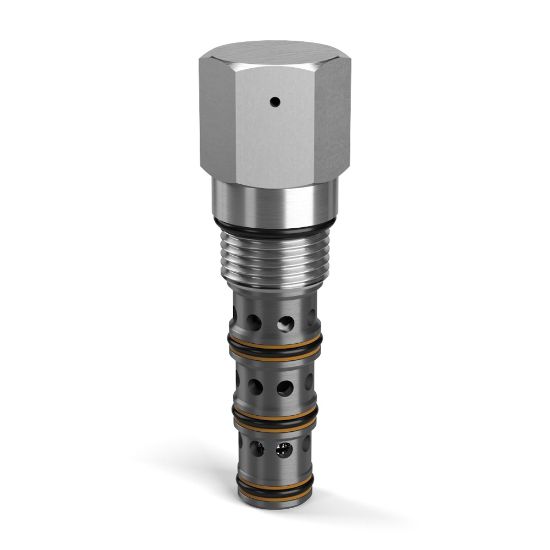

Parker N04G4-9.0VS - 3 Way Pilot Operated Directional Control Valves

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N04G4-9.0VS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Inlet Pressure Rating	6000	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Actuation Type	Pilot to shift
Maximum Operating Temperature	+400	Minimum Operating Temperature	-15
Configuration	Open Transition	Cavity Size	C10-4
Maximum Operating Pressure	6000	Operating Temperature	-15 to +400
Body Material	n/a	Flow Rate	22.5
Switching Pressure	131	Seal Material	Fluorocarbon
Operation Type	Pilot Operated	Drain Option	Vent to Atmosphere
Function	Directional Control	Maximum Flow Rate	24
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Sealed Pilot Included	Yes	Standard Flow Rate Setting	13
Weight	0.48	Pilot Location	External
Leak Rate	55 @ 1450 PSI (100 BAR)	Installation Torque	37
Flow Direction	2-3 Neutral, 3-4 Piloted	Division	Mobile Hydraulic Systems Division Europe
Flow Rate	22.5 GAL/MIN, 85 LPM	Configuration	Open Transition
Seal Material	Fluorocarbon	Switching Pressure	131 PSI, 9 BAR
Sealed Pilot Included	Yes	Flow Direction	2-3 Neutral, 3-4 Piloted
