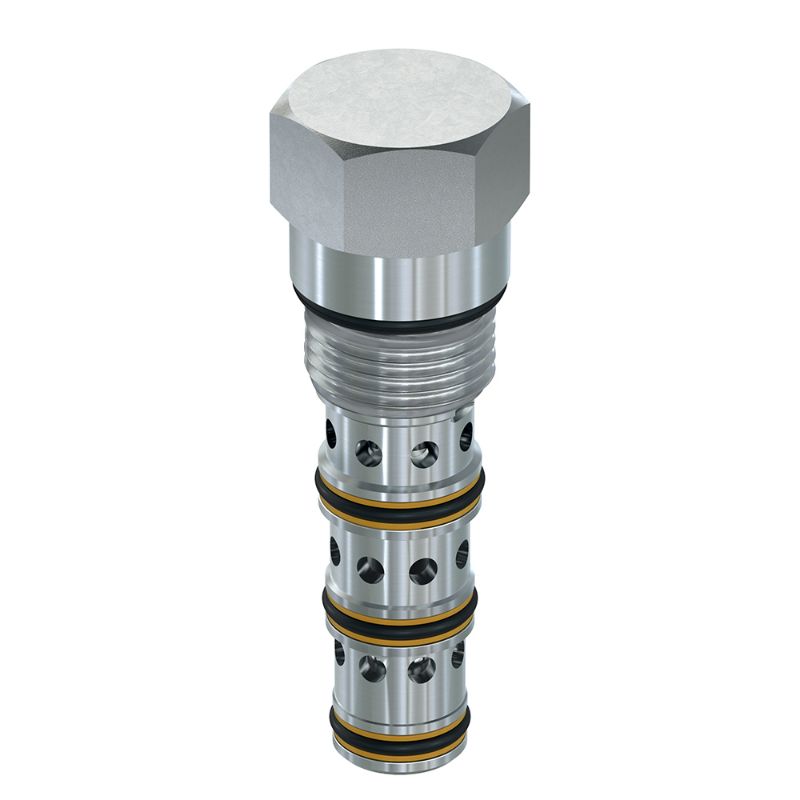

Parker N04A4-10.0N - 3 Way Pilot Operated Directional Control Valves

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N04A4-10.0N

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Sealed Pilot Included	No
Division	Mobile Hydraulic Systems Division Europe	Pilot Location	External
Drain Option	Internal	Maximum Operating Pressure	6000 psi
Installation Torque	37 lb-ft	Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min
Operating Temperature	-30 to +250 °F	Switching Pressure	10 bar
Cavity Size	C10-4	Configuration	Selector
Body Material	n/a	Maximum Operating Temperature	+121 °C
Weight	0.17 kg	Minimum Operating Temperature	-34 °C
Operation Type	Pilot Operated	Maximum Flow Rate	90 L/min
Actuation Type	Pilot to shift	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Directional Control	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate	24 Gal/min	Seal Material	Nitrile
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Standard Flow Rate Setting	13 Gal/min
Maximum Inlet Pressure Rating	6000 psi	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	3-4 Neutral, 2-3 Piloted	Seal Material	Nitrile
Configuration	Selector	Switching Pressure	145 PSI, 10 BAR
Sealed Pilot Included	No	Flow Direction	3-4 Neutral, 2-3 Piloted
Flow Rate	24 GAL/MIN, 90 L/MIN
