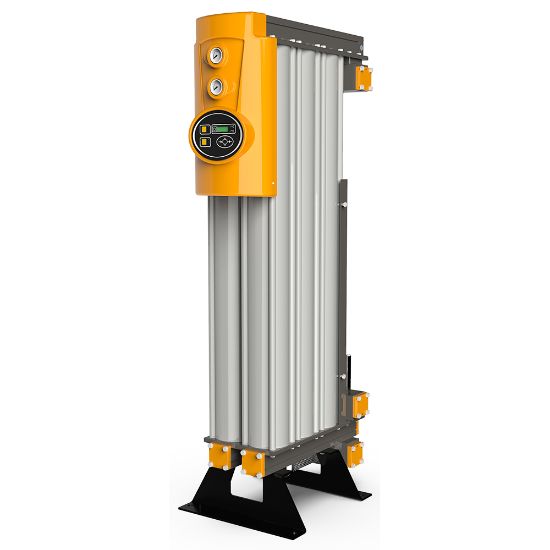

Parker MXS103CDS-70BP - MX DS Large Flow Heatless Compressed Air Dryer

Large flow modular compressed air dryers providing pressure dew points of -40°C, -20°C and -70°C options available. With flow rates up to 2040 m³/hr @ 7 barg, even greater flow rates can be achieved by multi-banking the dryers.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MXS103CDS-70BP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	Heatless	Noise Level	< 75 dBA
Application	Compressed Air Applications	Division	Gas Separation and Filtration Division EMEA
Ingress Protection Rating	IP55 Indoor Use Only	Weight	316 kg
Depth	550.0 mm	Technology	Filtration
Operating Temperature	41 to 122 °F	Connection Type	BSPP or NPT
Height	74.5 inch	Operating Pressure	4 to 13 barg
Width	33.7 inch	Electrical Requirements	85 - 265V 1ph 50/60Hz
Specifications Met	PED 2014/68/EU Fluid Group II	Product Series	MX
Brand	Parker	Ambient Temperature	55.0 °C Maximum
Industry	• Industrial Manufacturing Equipment<br/>• Food & Beverage<br/>• Automotive<br/>• Electronics<br/>• Pharmaceuticals<br/>• Medical & Dental	Product Type	Compressed Air Dryer
Division	Gas Separation and Filtration Division EMEA	Port Size	2 inch
ATEX Specifications Met	No	Flow Rate	612 m³/h @7 barg (360 cfm @102 psig)
Pressure Dew Point	-70°C (-100°F)	ISO Grade	Class 2.1.2
