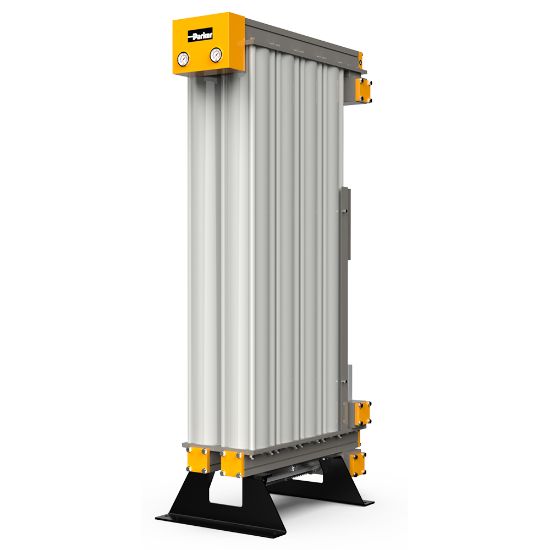

Parker MXP102C-70-ATEX - MX DS Large Flow Heatless Compressed Air Dryer

Large flow modular compressed air dryers providing pressure dew points of -40°C, -20°C and -70°C options available. With flow rates up to 2040 m³/hr @ 7 barg, even greater flow rates can be achieved by multi-banking the dryers.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MXP102C-70-ATEX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Width	687.0
Ambient Temperature	55.0 °C Maximum	Product Series	MX
Specifications Met	PED 2014/68/EU Fluid Group II	Electrical Requirements	Not Applicable /<br/>Fully Pneumatic Operation
Depth	550.0	Noise Level	< 75
Product Style	Heatless	Operating Pressure	4 to 13
Application	Compressed Air Applications	Height	1647.0
Ingress Protection Rating	IP55 Indoor Use Only	Connection Type	BSPP
Technology	Filtration	Division	Gas Separation and Filtration Division EMEA
Operating Temperature	5 to 50	Division	Gas Separation and Filtration Division EMEA
Weight	235	Product Type	Compressed Air Dryer
Industry	• Offshore Oil and Gas	ISO Grade	Class 2.1.2
ATEX Specifications Met	ATEX Directive 2104/34/EU Group II	Port Size	2 inch
Flow Rate	408 m³/h @7 barg (240 cfm @102 psig)	Pressure Dew Point	-70°C (-100°F)
