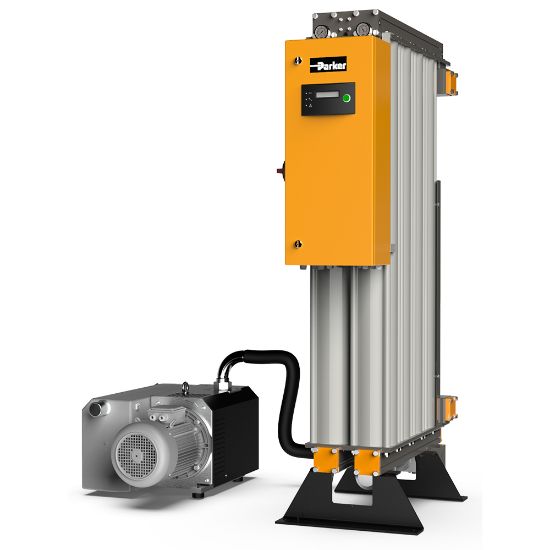

Parker MXLE102C-70 - MXLE Large Flow Low Energy Heatless Compressed Air Dryer

Large flow low energy modular compressed air dryers providing pressure dew points of -70°C and -40°C (-20°C option) with flow rates up to 2040 m³/hr @ 7 barg, even greater flow rates can be achieved by multi-banking the dryers.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MXLE102C-70

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Series	MXLE	Specifications Met	PED 2014/68/EU Fluid Group II
Brand	Parker	Depth	21.7 inch
Weight	583 lb	Division	Gas Separation and Filtration Division EMEA
Product Type	Compressed Air Dryer	Noise Level	< 75 dBA
Width	793.0 mm	Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Connection Type	BSPP	Electrical Requirements	Standard: 400V +/-10% 3PH 50Hz<br/>Option: 460V +/-10% 3PH 60Hz
Division	Gas Separation and Filtration Division EMEA	Ingress Protection Rating	IP55 Indoor Use Only
Application	Compressed Air Applications	Technology	Filtration
Operating Pressure	4 to 13 barg	Height	64.8 inch
Operating Temperature	5 to 50 °C	Product Style	Heatless Low Energy - Vacuum Assisted
Ambient Temperature	131.0 °F Maximum	ISO Grade	Class 2.1.2
Port Size	2 inch	Flow Rate	408 m³/h @7 barg (240 cfm @102 psig)
Pressure Dew Point	-70°C (-100°F)
