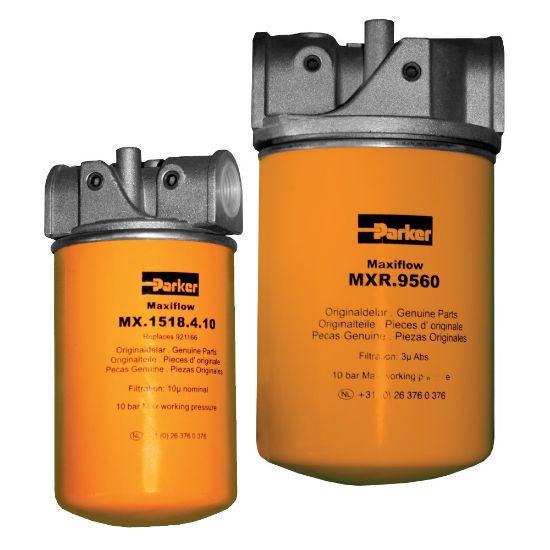

Parker MXA1210CBS3GG121 - Low Pressure In-Line Spin-On Filter - Maxiflow Series

The Maxiflow Series is a range of spin-on filters designed to provide low cost quality protection for hydraulic or lubrication systems.
Maximum pressure 10 bar. Maximum flow 360 l/min.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MXA1210CBS3GG121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Mounting Type	Inline	Industry	Agriculture
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Product Type	Hydraulic Filter	Housing Material	Aluminium
Application	Industrial Power Units	Operating Pressure	150 psi
Indicator Pressure Setting	1.2 bar	For Fluid Type	Hydraulic Oils
Materials of Construction	Housing: Aluminium	Flow Rate	up to 360 L/min
Product Style	Inline Spin-On Filter	Product Series	Maxiflow
Operating Temperature	-22 to 212 °F	Seal Material	Nitrile
Options	Standard	Micron Rating	10 µm
Filter Element Type	10C Cellulose	Connection Type	G¾
Bypass Valve Pressure Rating	1.7 bar	Flow Rate	0 to 60 l/min
Indicator Type	Electrical 42V, NC, G⅛
